The company Khaled Stainless is positioned within Cairo, Egypt and is considered a trustworthy manufacturer, supplier, and exporter of high-quality stainless steel goods. Their products are one of the best in the categories of which serve many industries around the world while adhering to their commitment to excellence and giving the customers what they need. Of all their products, among the said, is the Stainless Steel Welded Tubing, which is the optimum solution for execution of almost all kinds of applications. The tubing is fabricated by welding together rolled strips of stainless steel. It is notable for being robust, non-brittle, and resistant to corrosion. Among others, it finds maximum use in industries such as chemicals, petrochemicals, and oil production. The Stainless Steel Welded Tubing ensures precise, efficient, and cost-effective solutions against present-day engineering requirements.
It can be used in an array of industrial and structural requirements due to its unique properties including great resistance to corrosion, strength, and durability. The welding technique creates a very even tube with similar performance features along its length. The smooth surface creates a perfect aesthetic appearance and low maintenance requirements. Just like the high temperature resistance and chemical resistance of steel, it adds more favor to it by even keeping up with the harshest environments. Besides, its cheap and putative in different lengths and sizes.
| Range : | 1/8” NB to 36” NB, 1/4” OD to 36” OD |
|---|---|
| Outer Diameter : | 6.35 mm O.D to 114.3 mm O.D |
| Thickness : | 0.8 mm to 12.7 mm |
| Length : | up to 26 Meters |
| Specifications : | ASTM A312 / ASTM SA312 |
| Types : | As Welded, EFW, ERW |
| End : | Plain End, Beveled End |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304 | min. max. | – 0.08 | – 2.0 | – 0.75 | – 0.045 | – 0.030 | 18.0 20.0 | – | 8.0 10.5 | – 0.10 |
| 304L | min. max. | – 0.030 | – 2.0 | – 0.75 | – 0.045 | – 0.030 | 18.0 20.0 | – | 8.0 12.0 | – 0.10 |
| 304H | min. max. | 0.04 0.10 | – 2.0 | – 0.75 | -0.045 | – 0.030 | 18.0 20.0 | – | 8.0 10.5 | – |
| Element | SS 304 |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.

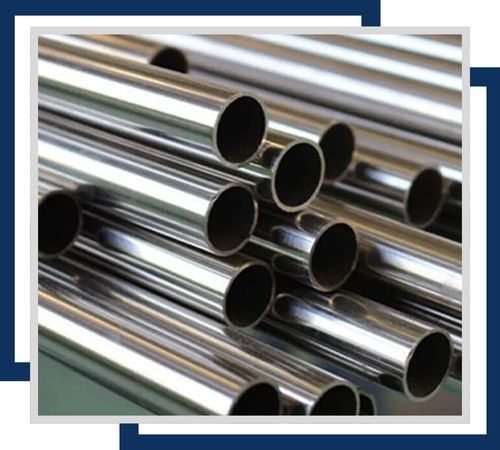

Stainless steel welded tubing are formed by welding stainless steel strips or plates. They offer strength, corrosion resistance, and cost-effectiveness, suitable for various industrial, commercial, and residential applications.

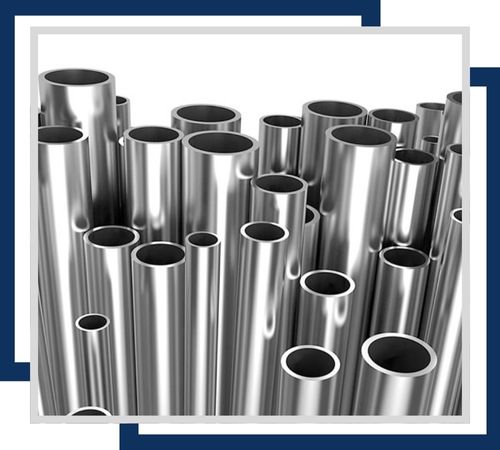

Stainless steel ERW (Electric Resistance Welded) tubing are produced by welding steel strips. They offer cost-effective, high-strength, and corrosion-resistant solutions for various industrial applications, providing durability and reliability.

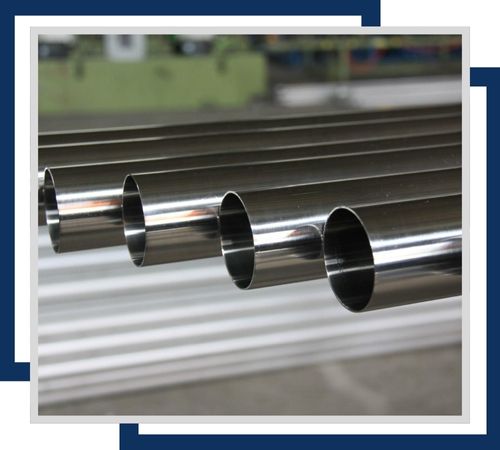

Stainless Steel EFW (Electric Fusion Welded) tubing are produced by electrically fusing stainless steel plates or strips. They offer high precision and strength, suitable for high-pressure and demanding applications.

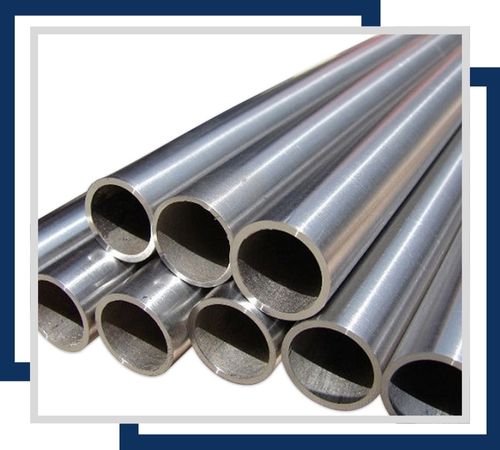

SS HFW (High-Frequency Welded) tubing are stainless steel tubings welded using high-frequency currents. They provide strong, precise joints, making them ideal for structural applications and high-strength requirements.

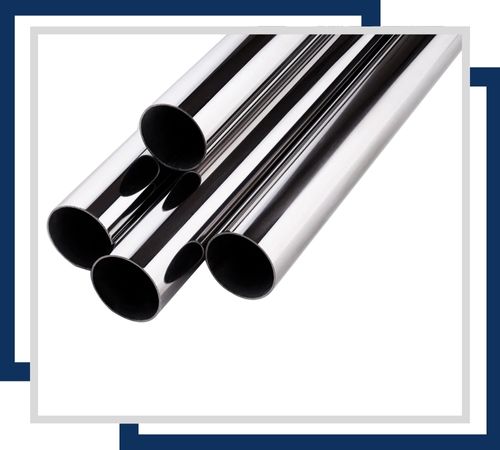

Stainless Steel butt-welded tubing are joined by aligning and welding the ends together. This method creates strong, leak-proof joints, ideal for high-pressure and high-temperature applications in various industries.

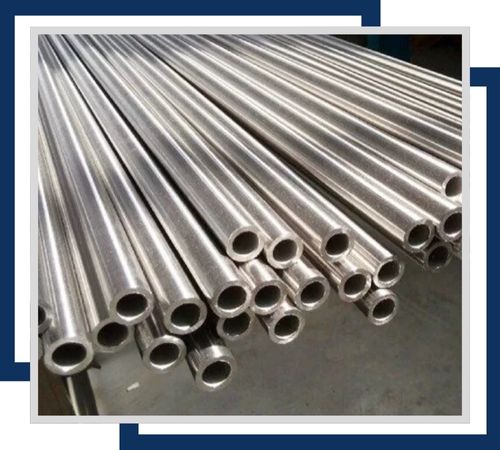

Stainless Steel laser-welded tubing use laser technology for precise, clean welds. They offer high accuracy, minimal thermal distortion, and are ideal for applications requiring tight tolerances and smooth finishes.
The tests include destructive testing methods and others which do not destroy the material but analyze the testing quality. We are developing into all modern aspects. Offering services to any customer that provides security assurance, we live achievement and a few policies such as consideration of diversity and advantage of best quality, quality reputation, and our name in the industry. Best quality speaks for itself, especially when the customer is satisfied after delivery. Logistical support at the most convenient part to ensure that shipping for emergency stock and standard packing materials is done correctly.
Stainless steel welded tubing is used across multiple industries due to its durability and corrosion resistance. It’s commonly employed in structural applications, including railings and supports in construction. In the automotive and aerospace sectors, it serves as tubing for exhaust systems and fuel lines. It’s also utilized in chemical processing and food industries for its ability to withstand harsh environments and maintain sanitary conditions. Additionally, it’s used in medical equipment and furniture for its strength and aesthetic appeal.
