Home > Sheet and Plates > Stainless Steel 440B Sheet and Plates
Khaled Stainless is a trusted manufacturer and supplier located in Cairo, Egypt, specializing in high-quality Stainless Steel 440B Sheets and Plates. These products are perfect for industries that demand high strength, wear resistance, and reliable performance. With a keen emphasis on precision engineering and strict adherence to international standards, the company guarantees that each sheet and plate offers outstanding durability, hardness, and dimensional accuracy. Crafted using cutting-edge processing techniques, 440B products excel in resisting abrasion and moderate corrosion. Khaled Stainless proudly serves various sectors, including mechanical engineering, petrochemicals, automotive manufacturing, and industrial machinery, consistently providing dependable material solutions for challenging applications.
Stainless Steel 440B Sheets and Plates are made from a high-carbon martensitic stainless steel alloy, enriched with significant chromium levels to enhance hardness and corrosion resistance. These plates showcase impressive tensile strength, good wear resistance, and improved toughness when heat-treated. Their mechanical stability ensures reliable performance even under stress and moderate temperatures. While they offer better corrosion resistance than 440C, 440B still maintains strong hardness and abrasion resistance, making it a great fit for semi-corrosive environments. This alloy is also known for its good machinability in the annealed state and keeps its dimensional accuracy in demanding applications.
| Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Plates Thickness | 0.3 mm to 120 mm |
| Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Finish | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Profiling | Plasma Plate Cutting, Laser Plate Cutting, Oxy-propane Flame Cutting |
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 440B | 0.6 -0.75 | 1.00 max | 1.00 max | 0.04 max | 0.030 max | 16.00 -18.00 | – |
| Tempering Temperature (°C) | Tensile Strengtd (MPa) | Yield Strengtd 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed* | 758 | 448 | 14 | 269HB max | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
Contact us to get a quick quote for your requirement.

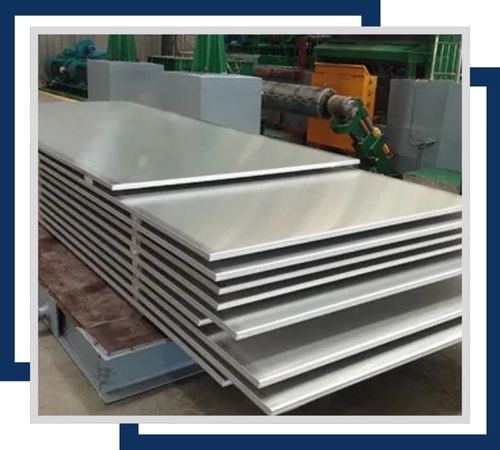

The excellent corrosion resistance provided by Stainless Steel 440B Hot Rolled Sheets ensures that it can be delivered in sizes between 3mm up to 150mm thickness, and in up to 2500mm width, for use where high strength and resistance to wear is required.

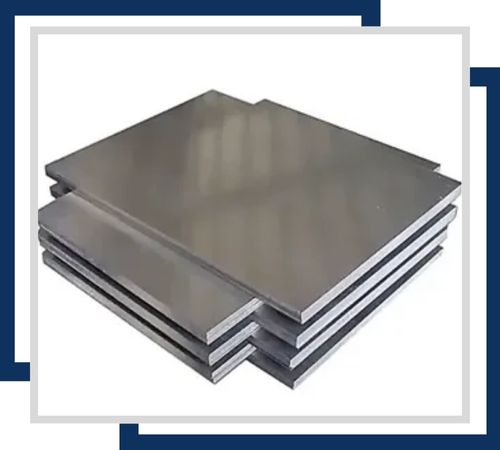

Cold-rolled stainless steel plates 440B have excellent corrosion resistance and a bright finish. These plates are available in a thickness range of 0.3mm to 6mm and widths up to 2000mm, which makes them ideal for precision applications that require tight tolerances.

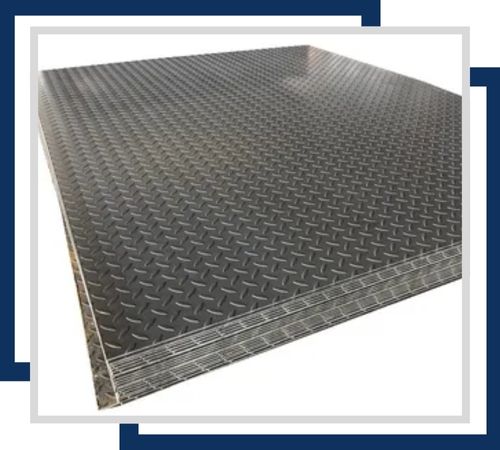

Stainless Steel 440B Chequered Plates, with raised patterns for improved grip, are resistant to corrosion. The thicknesses available are 1.5mm to 10mm, and the widths go up to 1500mm, which is perfect for flooring and stair treads.
The perforated sheets are made from Stainless Steel 440B, providing corrosion resistance and ventilation. Generally available in a thickness range of 0.5mm to 3mm, and sheet sizes up to 2000mm x 4000mm, the perforated sheets are used for filtration, architectural, and decorative applications.

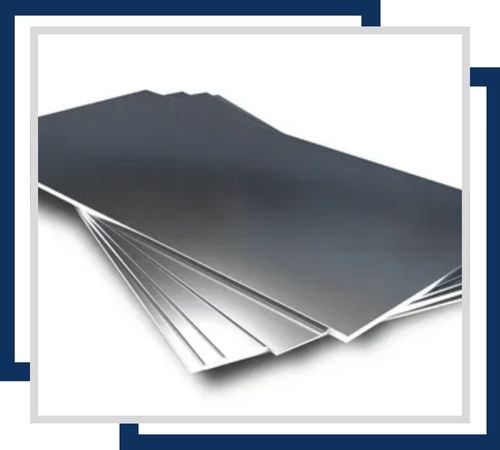

Stainless Steel 440B Shim Sheets are corrosion resistant and find applications in fine adjustment of machines and tools. The sheets have a thickness ranging from 0.05mm to 3mm and come in standard sizes such as 1000mm x 2000mm.

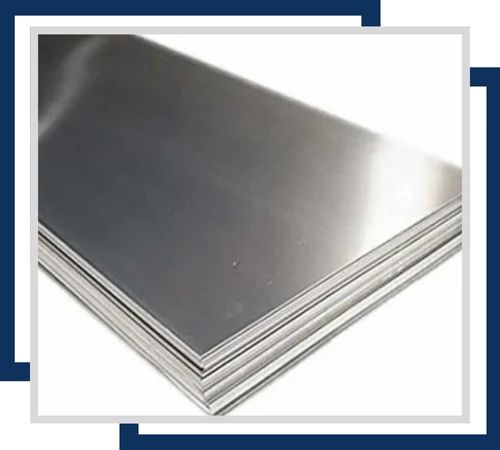

The 440B Polished Plates of Stainless Steel offer corrosion resistance along with an excellent aesthetic appeal, and are offered in a variety of thicknesses between 1mm and 50mm and widths up to 2000mm, especially for decorative and architectural applications.
At Khaled Stainless, we give prime importance to quality along with great customer service backed up by rich documentation of the excellent Stainless Steel 440B Sheets and Plates that we deliver. We give essential documents that include the commercial invoice, the packing list, fumigation certificate, heat treatment chart, quality assurance plan, and a lab test report NABL approved. Such rich documentation of these premium quality products increases trust and confidence in the product from the most valued customers’ side. Besides, we provide Stainless Steel 440B Sheets and Plates with different test certificates, such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate, as a reflection of our commitment to excellence and customer satisfaction.
Stainless Steel 440B Sheets and Plates find extensive use in industries that require high-strength and wear-resistant materials. They’re perfect for crafting cutting tools, blades, industrial knives, pump components, and precision mechanical parts. The automotive and aerospace industries utilize them in components that face friction and mechanical stress. Additionally, they are well-suited for valve parts, nozzles, molds, and heavy-duty machine components. With their unique blend of hardness, moderate corrosion resistance, and structural stability, 440B sheets and plates are an excellent choice for demanding environments.
