Khaled Stainless, located in Cairo, Egypt, has earned a solid reputation as a reliable manufacturer and supplier of Stainless Steel 410S Sheets and Plates. These products are perfect for applications that demand good corrosion resistance, oxidation stability, and cost-effectiveness. Crafted with advanced rolling techniques and rigorous quality checks, our sheets and plates boast uniform thickness, a smooth surface finish, and consistent mechanical properties. Khaled Stainless ensures that all SS 410S sheets and plates meet ASTM and international standards, catering to industries that need dependable materials for moderate corrosive and high-temperature settings.
Stainless Steel 410S is a low-carbon, martensitic stainless steel that contains about 11.5–13.5% chromium. This low carbon content not only enhances weldability but also minimizes the risk of cracking during fabrication. SS 410S sheets and plates showcase moderate tensile strength, good ductility, and impressive oxidation resistance at high temperatures. Compared to the standard 410 grade, this material offers better formability, making it an excellent choice for various fabrication and thermal processing applications.
Standard : ASTM / ASME A240 / SA240
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
| Element | SS 410S |
| C | 0.08 max |
| Mn | 1 max |
| Si | 1 max |
| P | 0.040 max |
| S | 0.030 max |
| Cr | 11.5 – 13.5 |
| Fe | 85 |
| Element | SS 410S |
| Density | 7.8 g/cm3 |
| Tensile Strength | psi – 64,400, MPa – 444 |
| Yield Strength (0.2%Offset) | psi – 42,000, MPa – 290 |
| Elongation | 33 % |
| Hardness | Rockwell B (HR B)- 75 / Brinell (HB)- 65 |
Contact us to get a quick quote for your requirement.

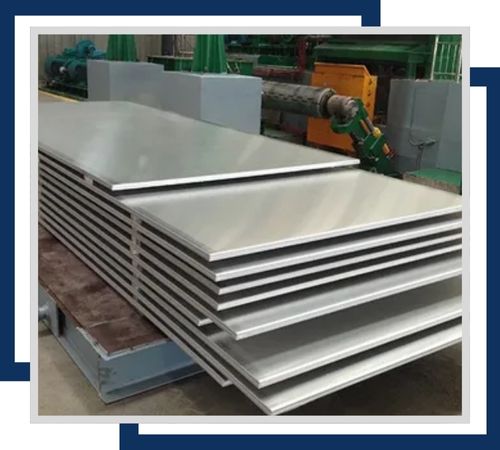

Stainless Steel 410S hot rolled sheets possess excellent corrosion resistance with high strength and toughness. The sheets come in a wide range of thicknesses, starting from 1.5 mm up to 20 mm with widths up to 2000 mm. These are suitable for high-impact resistant applications.

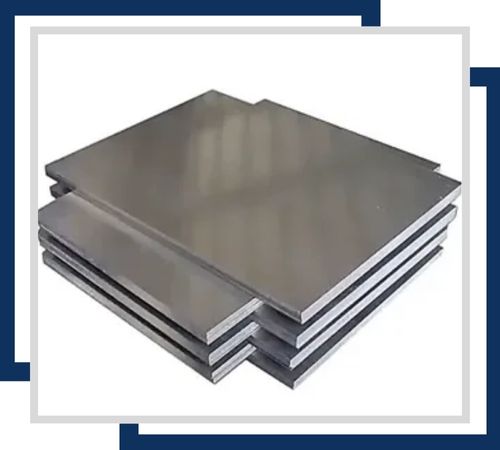

Stainless Steel 410S Cold Rolled Plates have corrosion resistance along with a smooth, bright surface finish. Usually made available in width up to 1500mm and in different thickness ranges such as 0.5-6 mm these plates are specially suited for use in precision engineering and for critical applications where closer tolerances apply.

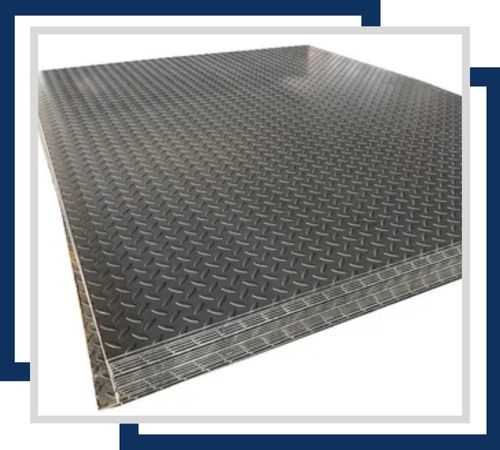

Stainless Steel 410S Chequered Sheets have a raised pattern, which gives excellent corrosion and slip resistance. These sheets are available in various thicknesses from 1.2 mm to 6 mm and up to 2000 mm x 1000 mm dimensions, which make them suitable for flooring and decorative applications.

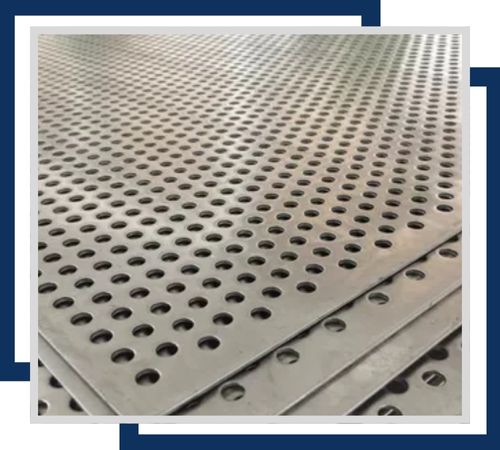

Stainless Steel 410S Perforated Plates combine protection against corrosion with increased ventilation and aesthetics. The perforated plates are available in a number of hole sizes and patterns, available in thicknesses ranging from 1 mm up to 4 mm and available in dimensions up to 2500 mm × 1200 mm for filters and screens.

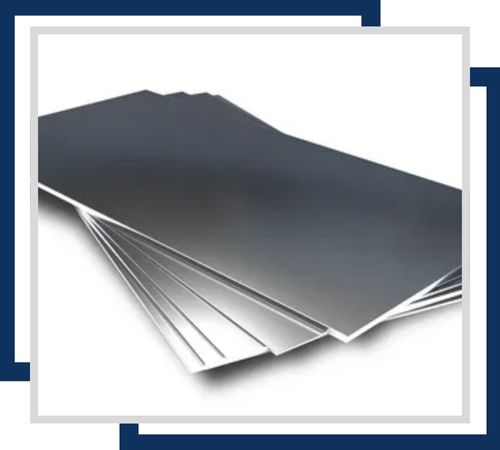

The Shim Sheets of Stainless Steel 410S are available with corrosion resistance and precise control over thickness. These sheets are available in 0.1 mm thickness up to 1000 mm x 1000 mm, cut to size for fine-tuning mechanical fits.

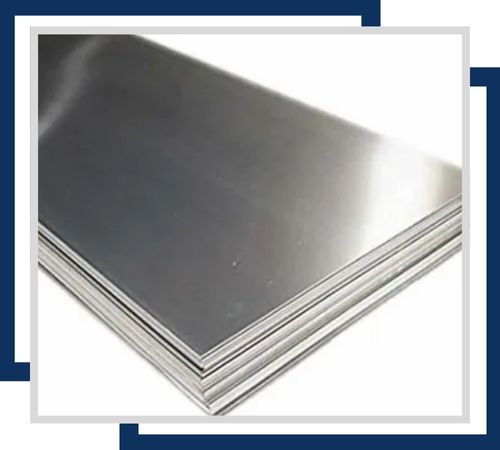

Stainless Steel 410S polished plates offer outstanding corrosion resistance and have a highly reflective finish. The plates are usually available in sizes up to 2000 mm x 1000 mm with thickness between 1mm and 6mm. Stainless Steel 410S Polished Plates are used in aesthetic applications as well as in decorative purposes.
Khaled Stainless guarantees a high customer experience by completing all the necessary documentation of high-quality Stainless Steel 410S Sheets and Plates. We will provide our customer with commercial invoices, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and lab test reports certified by NABL-approved labs to prove authenticity and superior quality in our products that can give complete trust and satisfaction to our respected customers. Additionally, our Stainless Steel 410S Sheets and Plates are supplied with test certificates such as MTC as per EN 10204/3.1b, PMI Test Certificate, a 100% radiography test report, and Third Party Inspection Certificate. These certificates reflect our customer-focused approach and our very strong commitment to product excellence.
Stainless Steel 410S sheets and plates find their way into a variety of applications that involve heat and moderate corrosion exposure. You’ll often see them in furnace components, heat exchangers, exhaust systems, boilers, and thermal processing equipment. Additionally, these sheets and plates are essential in petrochemical plants, power generation units, and industrial fabrication where oxidation resistance and structural integrity are crucial. SS 410S is ideal for creating liners, partitions, and structural components, striking a perfect balance between performance, weldability, and cost efficiency.
