For businesses in Cairo and beyond seeking unwavering reliability in high-temperature environments, Khaled Stainless stands as a trusted partner. Based in the industrial heart of Egypt, we specialize in the supply and manufacturing of Stainless Steel 321H tubing, a material chosen for its superior strength when the heat is on. We understand that your projects demand components that won’t just perform, but will endure, and our expertise ensures you receive tubing solutions built to withstand the most demanding applications without compromise.
The strength of 321H tubing comes from its specific composition, which is stabilized with titanium to prevent corrosion at high temperatures. This alloy maintains excellent mechanical properties, including impressive tensile strength and exceptional creep resistance, meaning it resists deformation under stress and extreme heat. These inherent characteristics make it a go-to material for engineers who need a product that offers both durability and long-term stability in challenging operational conditions.
Standard ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790
Dimensions ASTM, ASME and API
Range 1/2″ NB TO 24″ NB IN SCH 5, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160 & XXS as Per NACE MR 01 75
Thickness 0.3mm – 50 mm
Outer Diameter 6.00 mm OD up to 914.4 mm OD
Schedule SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS
Type Seamless / ERW / Welded/ Fabricated
Form Round, Square, Rectangular, Hydraulic, etc.
Length Single Random, Double Random & Cut Length
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Element | Grade 904L |
|---|---|
| Density | 8 |
| Melting Range | 1300 -1390 ℃ |
| Tensile Stress | 490 |
| Yield Stress (0.2%Offset) | 220 |
| Elongation | 35% minimum |
| Hardness (Brinell) | – |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 321H tubing through rigorous testing and certification processes. Each tube undergoes a thorough evaluation, including hydrostability, chemical testing and mechanical testing. Certified to international standards such as ASTM and ASME, these containers provide reliability, durability and high performance in demanding industrial applications.

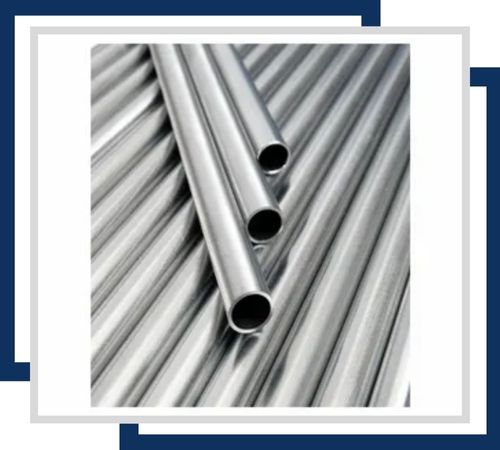

This tubing is available in sizes ranging from 1/8″ to 24″ in outer diameter. It offers excellent corrosion resistance, especially against intergranular corrosion after exposure to temperatures in the chromium carbide precipitation range of 427-816°C. Ideal for high-temperature applications requiring a continuous, strong, and uniform surface.
Available in dimensions from 1/8″ to 36″ in outer diameter, this tubing is known for its high resistance to stress and pitting corrosion. It’s frequently used in chemical processing and other high-temperature applications due to its robust performance under harsh conditions. The welding process ensures a strong, durable, and leak-proof seam
These tubes come in sizes from 1/4″ to 1″ in outer diameter, designed for excellent thermal conductivity and corrosion resistance. Ideal for high-temperature and high-pressure environments, they are used in industries such as petrochemical and power generation. Their composition resists scaling and oxidation even at elevated temperatures.

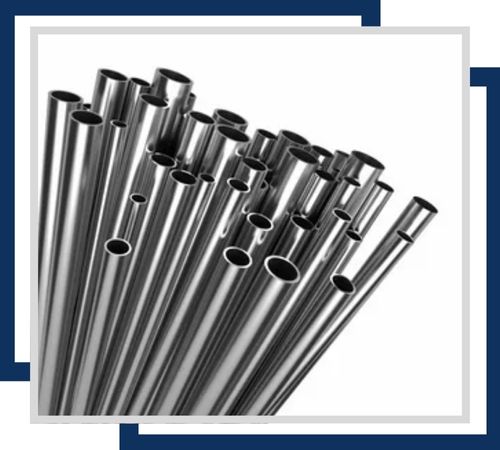

Offered in sizes from 1/8″ to 2″ in outer diameter, this tubing provides superior resistance to corrosion and high temperatures. It is used in precision instrumentation and control systems, ensuring reliable performance and accurate measurements. The tubing’s stability at high temperatures ensures minimal expansion and contraction.

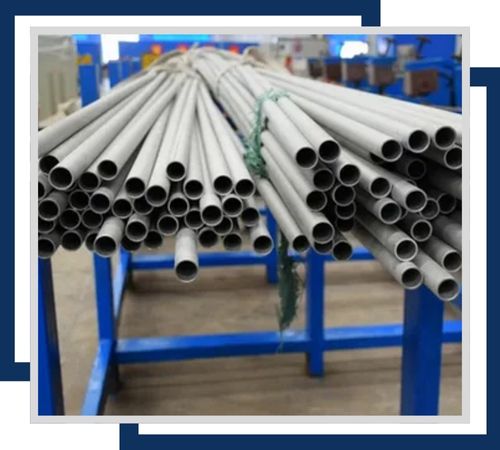

These tubes, ranging from 1/2″ to 5″ in outer diameter, are designed to withstand high-pressure and high-temperature environments typical in boiler systems. They offer excellent corrosion resistance, especially against steam and hot gases. Their durability ensures long service life and reliability in energy and industrial applications.

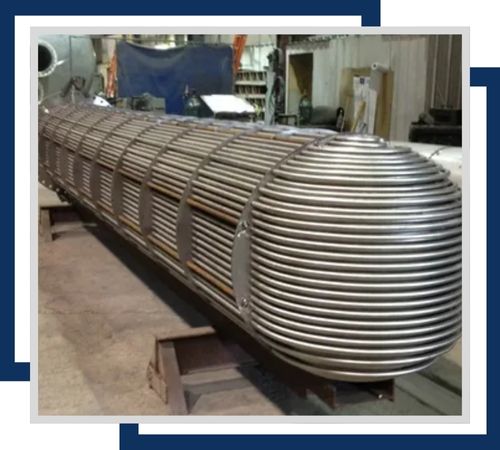

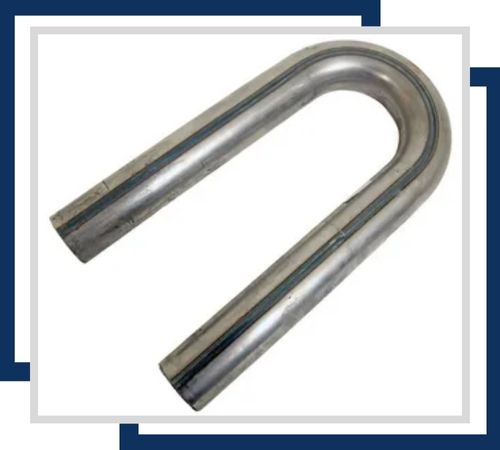

Available in sizes from 1/4″ to 1″ in outer diameter, U-tubes are essential for heat exchanger applications requiring a compact and efficient design. They provide excellent corrosion resistance and thermal stability, making them suitable for use in petrochemical, oil refining, and power generation industries. The U-shape allows for efficient heat transfer in limited spaces.

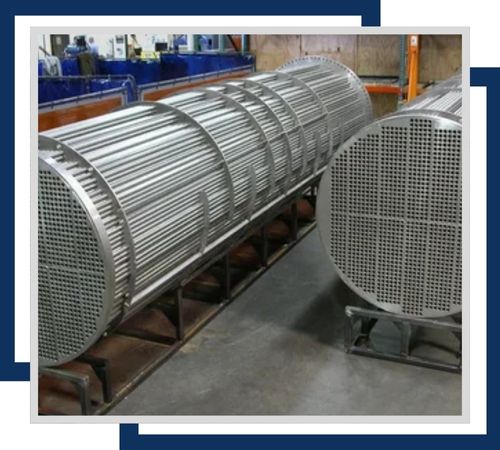

These tubes come in sizes ranging from 1/4″ to 1″ in outer diameter and are designed for use in condenser applications where efficient heat transfer and resistance to corrosion are critical. They are commonly used in power plants, HVAC systems, and refrigeration. The tubes ensure minimal fouling and scaling over prolonged use.

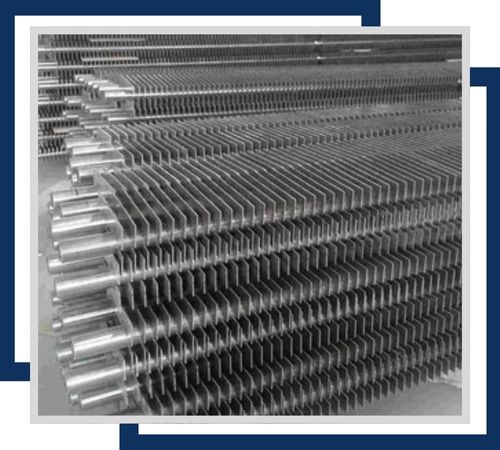

Fin tubes are available in sizes from 1/2″ to 2″ in outer diameter, designed to enhance heat transfer efficiency in various industrial applications. The addition of fins increases the surface area, improving thermal performance. These tubes offer excellent resistance to high-temperature oxidation and corrosion, making them ideal for heat exchangers and boilers.
You’ll typically find Stainless Steel 321H tubing hard at work in sectors where failure is not an option. It’s essential in constructing industrial furnaces, powerful heat exchangers, and the critical piping systems of chemical processing plants. Its ability to perform under intense thermal stress also makes it invaluable in the aerospace and power generation industries. Essentially, wherever temperatures soar and pressure is a constant factor, this tubing provides the resilient backbone for safe and efficient operations.
