Khaled Stainless, based in Cairo, Egypt, specializes in providing high-performance Stainless Steel 317L sheets and plates that are specifically designed for corrosive and high-chloride processing environments. Made from low-carbon 317L alloy, these products boast exceptional resistance to pitting and crevice corrosion, thanks to their higher molybdenum and chromium levels. Each sheet and plate is sourced from certified mills, meticulously rolled, and thoroughly inspected for thickness, surface finish, and mechanical integrity. With complete mill test certificates and traceability, Khaled Stainless caters to industries like chemical processing, pulp and paper, marine, pharmaceutical, and food-grade sectors. They also offer custom sizes, surface finishes, and cutting services to meet specific project needs.
Stainless Steel 317L is an austenitic alloy that typically contains about 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, along with a low carbon content (≤0.03%) to minimize carbide precipitation during welding. This unique composition gives it superior pitting resistance compared to 316L. The usual mechanical properties include a tensile strength ranging from 515–690 MPa, yield strength around 205–275 MPa, and an elongation exceeding 40% in its annealed state. Hardness usually falls between 150–200 HB, depending on how it’s processed. This alloy remains stable and corrosion-resistant in environments rich in chlorides and at elevated temperatures, complete with full material certification.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | – |
| Density | 8.0 g/cm3 |
|---|---|
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.

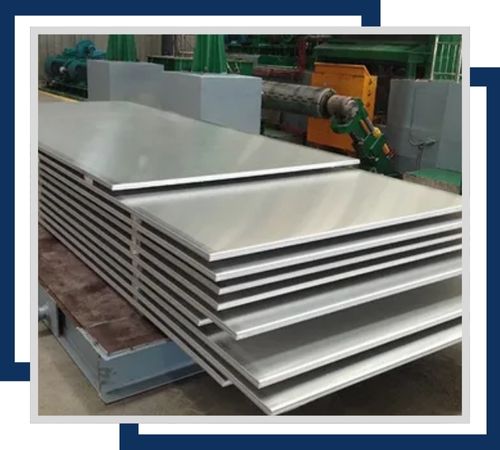

High resistance to corrosion by chlorides and acids available as sheets and plates from a thickness of 3mm to 100mm in width to 2 meters. The hot-rolled product allows heavy usage because it produces a tough and durable finish.

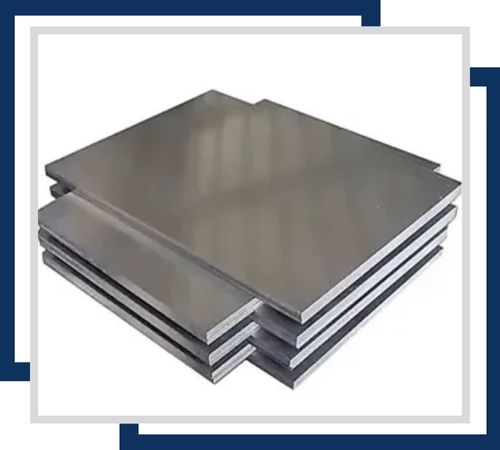

With high corrosion resistance, the cold rolling provides cold rolled sheets and plates that range in thickness from 0.3mm to 6mm, with widths reaching up to 1.5 meters. In the case of cold rolling, it leaves the surface very smooth and precise for aesthetic and high-precision uses.

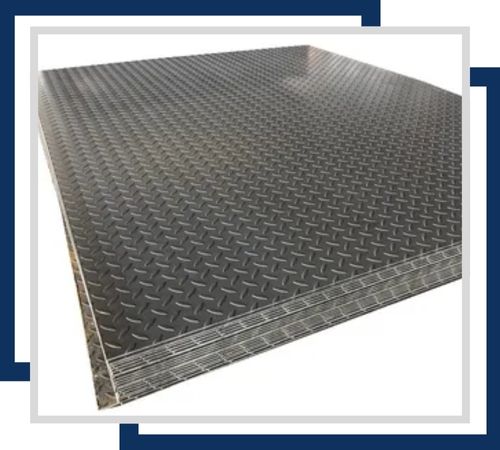

They have been designed with the patterned surface for superior friction and slip resistance. Chequered sheets and plates provide superior resistance to corrosion. These products are available from 1.5mm up to 6mm thickness in custom sizes as per application requirements.

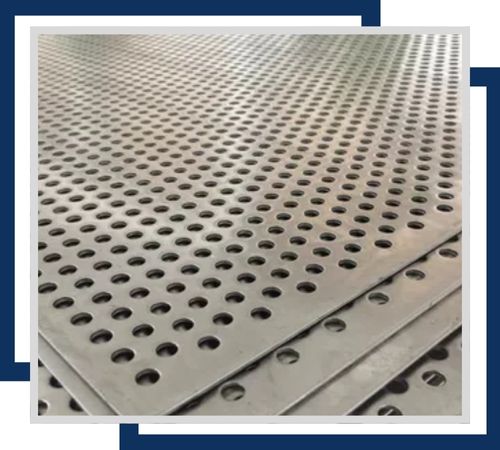

These sheets and plates are superior in corrosion resistance and perforated holes for ventilation, filtering, and aesthetic purposes. Common sizes range from 0.5mm to 6mm thick, and custom hole patterns and diameter sizes are offered according to several industrial and architectural needs.

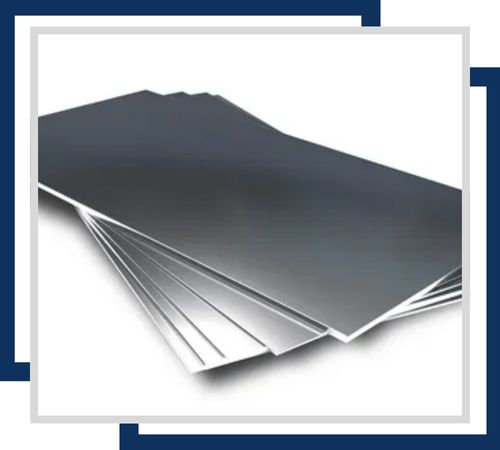

Shim sheets and plates are highly resistant to corrosion and are used for precise spacing and alignment. They are thin gauges usually from 0.1mm to 3mm thick, but may be customized in dimensions according to the particular mechanical and industrial application.

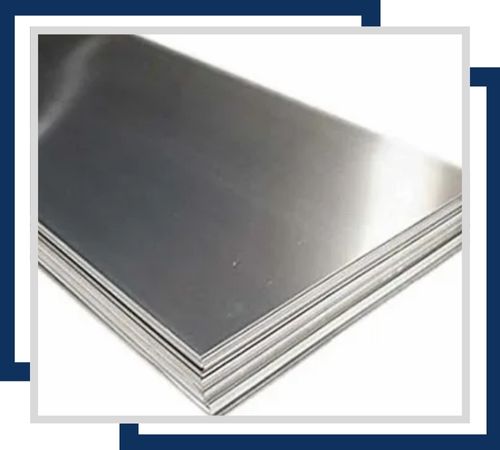

They come with great corrosion resistance as well as the option of polishing to a mirror finish for aesthetic use, suitable in decorative or high-visibility applications. The sheets and plates range in thickness from 0.5mm to 12mm.
We, at Khaled Stainless, ensure a completely hassle-free experience to our customer while providing documentation with our premium range of Stainless Steel 317L Sheets and Plates . Our pack consists of the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. The quality and authenticity of our product get authenticated due to these documents, which then brings trust and confidence in the mind of our client. We also provide test certificate for our Stainless Steel 317L Sheets and Plates, like an MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates indicate our relentless pursuit of client satisfaction and our quest for excellence in the quality of the product.
Stainless Steel 317L sheets and plates are ideal for use in harsh processing environments where enhanced corrosion resistance is crucial. They find common applications in chemical and petrochemical equipment, acid production facilities, pulp and paper digesters, desalination units, marine components, food-processing machinery, pharmaceutical vessels, heat exchangers, and scrubber systems. Thanks to their low carbon content, they allow for reliable welding without sensitization, making them perfect for constructing tanks, ducts, and pressure equipment.
