Khaled Stainless, based in Cairo, Egypt, specializes in precision-manufactured Stainless Steel 317L pipe fittings designed to withstand tough, corrosive, and high-chloride environments. Our product lineup features elbows, tees, reducers, caps, stub ends, and couplings, all crafted from certified low-carbon 317L alloy through controlled forming, forging, or seamless fabrication techniques. Each fitting is rigorously inspected for dimensions, surface quality, and mechanical properties, complete with full mill test certificates and batch traceability. Thanks to its higher molybdenum content, 317L offers better resistance to pitting and crevice corrosion compared to 316L. Khaled Stainless caters to the chemical, marine, desalination, pulp and paper, and pharmaceutical sectors with both standard and custom sizes.
Stainless Steel 317L is an austenitic alloy that typically contains about 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, along with a very low carbon content (≤0.03%) to reduce carbide precipitation during welding. This unique composition greatly enhances corrosion resistance in environments rich in chlorides and acids. The usual mechanical properties for 317L fittings include tensile strength ranging from 515–690 MPa, yield strength around 205–275 MPa, elongation exceeding 40% in the annealed state, and hardness of about 150–200 HB depending on processing. All materials come with certificates and optional third-party testing.
| Grades | 201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size | ½”NB to 48″NB in |
| Schedule | Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 317L | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
We provides high-quality Stainless Steel 317L Pipe Fittings by adhering to strict, tight industry standards. Every single product produced undergoes a range of trials, including dimensional, material, and pressure tests to give assurance of reliability and performance. All our fittings come with relevant quality assurance documents, including Mill Test Certificates (MTC), to ensure compliance with global specifications.

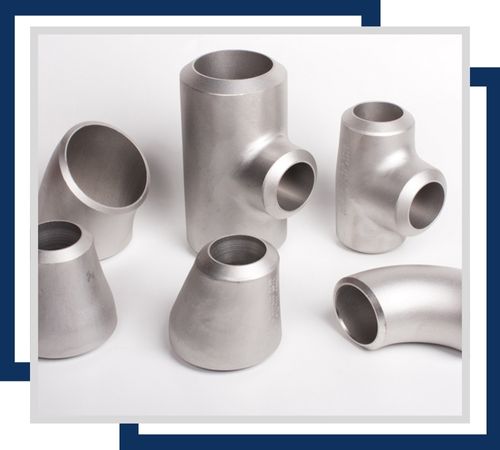

Stainless Steel 317L pipe fittings are high-performance components offering exceptional corrosion resistance and strength, particularly against chlorides and acids. Ideal for harsh environments, they provide durability in industrial applications.

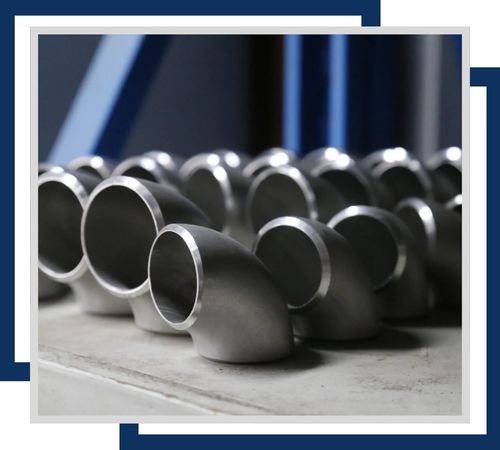

SS 317L Butt Weld pipe fittings are durable components used to join pipes through welding. Made from stainless steel 317L, they offer superior corrosion resistance and strength in aggressive environments.
SS 317L Socket Weld pipe fittings connect pipes via a socket weld. Made from stainless steel 317L, they provide excellent corrosion resistance and strength, ideal for high-temperature and harsh chemical environments.

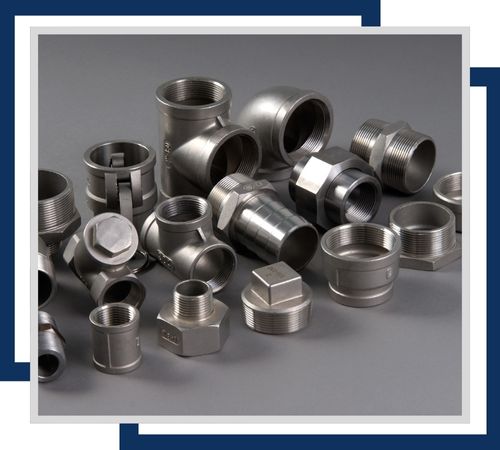

Stainless Steel 317 seamless fittings are high-quality components without welds, offering excellent corrosion resistance and strength. They are ideal for high-temperature and corrosive environments, providing durability and reliability.

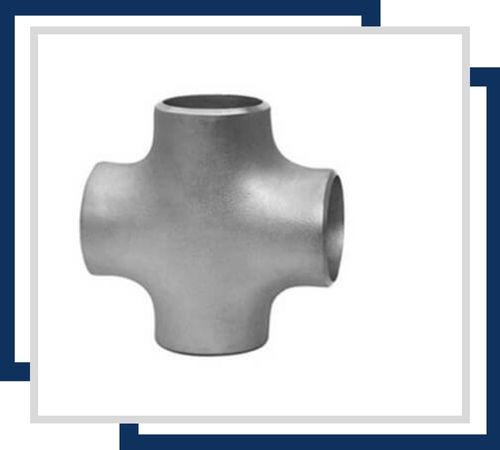

SS 317L cross pipe fittings connect four pipes at a junction. Made from stainless steel 317L, they offer exceptional corrosion resistance and strength, suitable for harsh environments and high-temperature applications.

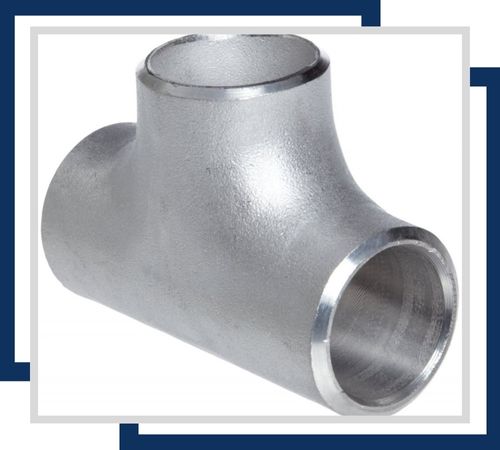

Stainless Steel 317L tee fittings create a T-junction by connecting three pipes. Made from stainless steel 317L, they provide superior corrosion resistance and strength, ideal for harsh and high-temperature environments.
Stainless Steel 317L pipe fittings are the go-to choice for systems that face harsh chemicals, seawater, chlorides, and high-corrosion industrial settings. They find common applications in chemical and petrochemical processing, desalination facilities, pulp and paper digesters, wastewater treatment systems, marine piping, heat exchangers, scrubber units, and pharmaceutical or food-processing lines. Their low-carbon content enhances weldability, making them perfect for fabricated piping assemblies that need to resist corrosion.
