Located in the bustling industrial heart of Cairo, Egypt, Khaled Stainless has built a reputation as a trusted partner for high-quality stainless steel components. They specialize in supplying robust Stainless Steel 316/316L forged fittings, products known for their exceptional resilience. Sourcing from these experts ensures you receive components engineered to withstand the most demanding environments, providing reliable performance and long-term value for critical projects across the region and beyond.
The strength of 316/316L lies in its sophisticated composition, which includes a crucial addition of molybdenum. This element dramatically enhances the alloy’s resistance to pitting and corrosion, particularly from chlorides. Along with excellent tensile strength and good ductility, these forged fittings are designed to maintain their integrity under high pressure and stress, offering a durable and dependable solution for systems where failure is not an option.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 316 / 316L UNS (S31600, S31603), DIN (1.4401 / 1.4436, 1.4404 / 1.4435)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316/ | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316L | 1399 °C (2550 °F) |
Contact us to get a quick quote for your requirement.
We ensures Stainless Steel 316/316L Forged Fittings of the highest quality. The products that leave our portal are all tested dimensionally, mechanically and chemically so as to guarantee performance and durability. We provide complete certifications in the form of material certificates and testing reports. All those cross international standards for all our customers’ satisfaction.

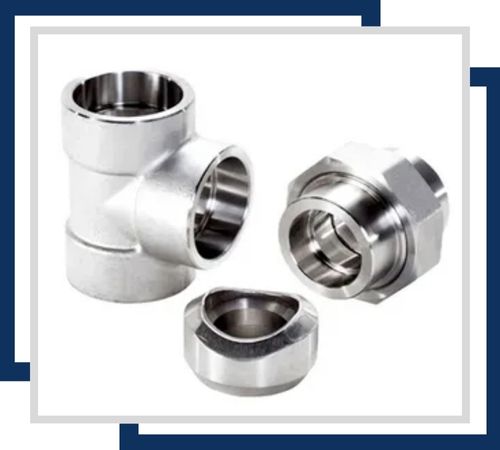

These fittings are available in various sizes, typically from 1/8″ to 4″ in diameter. They are designed for high-pressure applications and provide excellent resistance to corrosion, especially in marine environments.

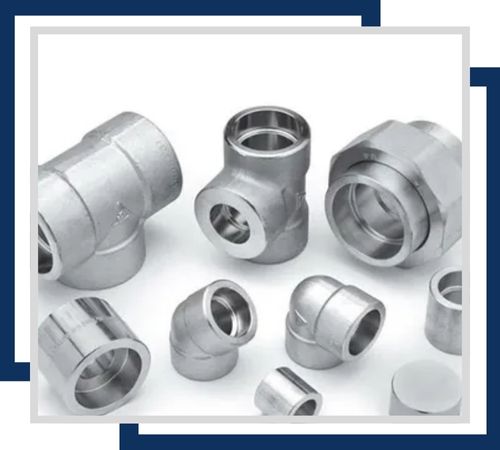

Threaded fittings come in sizes ranging from 1/8″ to 6″. They offer superior corrosion resistance and are ideal for use in aggressive environments such as chemical processing and marine applications.

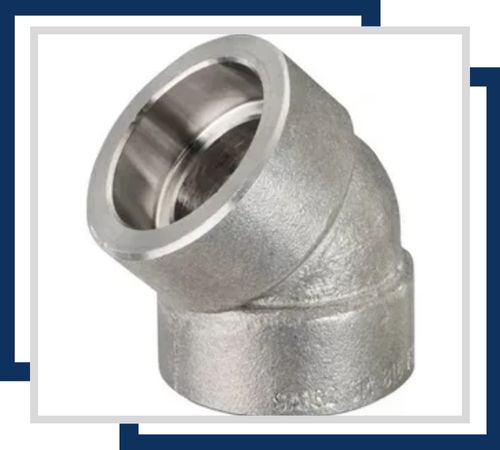

This elbow fitting is commonly available in sizes from 1/2″ to 4″. It facilitates smooth flow changes and resists corrosion effectively, making it suitable for high-pressure and high-temperature systems.

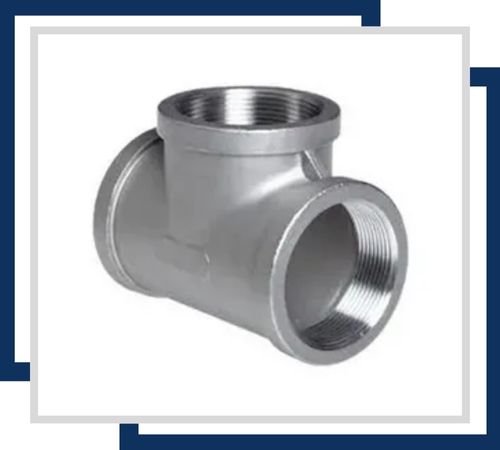

Threaded tees are available in sizes ranging from 1/8″ to 6″. They are used to connect three pipes at a junction and offer excellent resistance to corrosion and high temperatures.

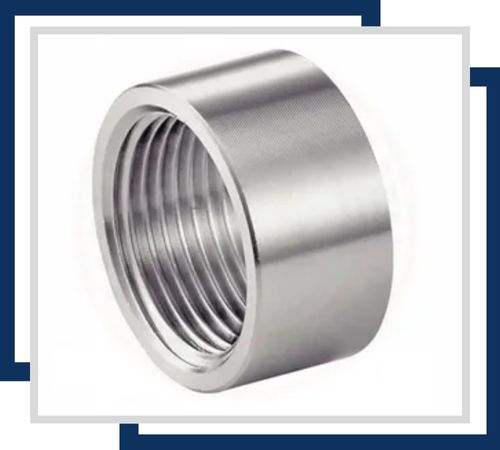

This fitting is typically available in sizes from 1/8″ to 4″. It is used to connect a pipe to another fitting or equipment and provides high resistance to corrosion and wear.

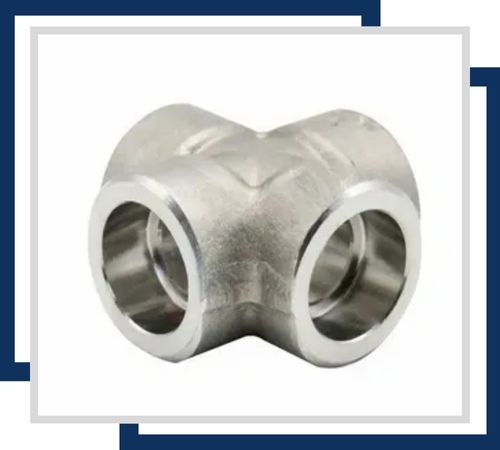

Available in sizes from 1/2″ to 4″, the socket weld cross is used to connect four pipes at right angles. It offers excellent corrosion resistance and is suitable for high-pressure applications.
You’ll typically find these fittings hard at work in challenging settings where ordinary materials would quickly falish. They are essential in chemical processing plants, marine and offshore applications, and pharmaceutical manufacturing, handling everything from aggressive acids to saltwater. Their reliability also makes them a preferred choice for high-purity food and beverage production and in the intricate piping of oil and gas facilities, proving indispensable for maintaining system integrity.
