Khaled Stainless is a reputable and well-established manufacturer and supplier located in Cairo, Egypt. They’re known for delivering top-notch Stainless Steel 310/310S Sheets and Plates that cater to a variety of industrial needs. Committed to providing products that align with international standards, the company guarantees exceptional heat resistance, corrosion durability, and precise dimensions. Their Stainless Steel 310/310S materials are crafted using cutting-edge technologies to ensure they perform reliably in tough conditions. With a strong emphasis on customer satisfaction, Khaled Stainless serves industries like petrochemical, construction, power generation, and high-temperature processing, both regionally and globally.
Stainless Steel 310/310S Sheets and Plates are high-temperature alloys that contain about 24–26% chromium and 19–22% nickel, which gives them remarkable oxidation and corrosion resistance. The low-carbon 310S grade enhances weldability and minimizes carbide precipitation. These materials maintain impressive tensile strength, yield strength, and toughness, even when exposed to high temperatures. Their balanced chemical composition ensures superior creep resistance, thermal stability, and structural integrity, making them reliable for extended use in harsh industrial settings where consistent mechanical performance is essential.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Mn | Si | P | S | Cr | Ni | Fe | |
|---|---|---|---|---|---|---|---|---|
| 310 | 0.25 max | 2.0 max | 1.50 max | 0.045max | 0.03max | 24-26 | min: 8.0 max: 12.0 | Balance |
| 310S | 0.08 max | 2.00 max | 1.50 max | 0.045 | 0.03 | 24-26 | 19-22 | Balance |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX |
|---|---|---|---|---|
| 310 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% | – |
| 310S | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% | – |
Contact us to get a quick quote for your requirement.

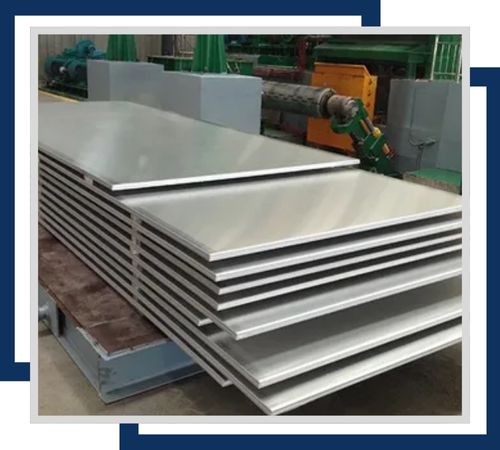

Hot-rolled sheets of Stainless Steel 310 are corrosion-resistant and resistant to corrosion and have high temperature stability. Available in sizes of 1.5 mm up to 25 mm thick, dimensions vary with customer requirements and offer robust performance in high-temperature applications.

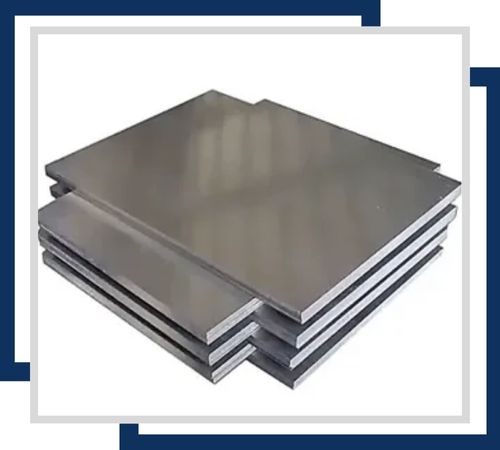

Available in gauges from 0.4 mm to 3 mm thickness, these have excellent corrosion resistance and improved surface finish. Suitable for applications which require tight tolerance and smoothness of the surfaces, these have precision and strength.

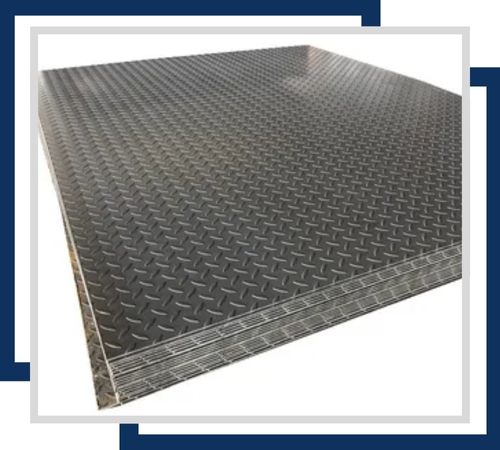

The Stainless Steel 310 chequered plates offer corrosion resistance with the added feature of slip resistance. The thickness varies from 2 mm to 12 mm. They are applied in floorings and industries for better traction.

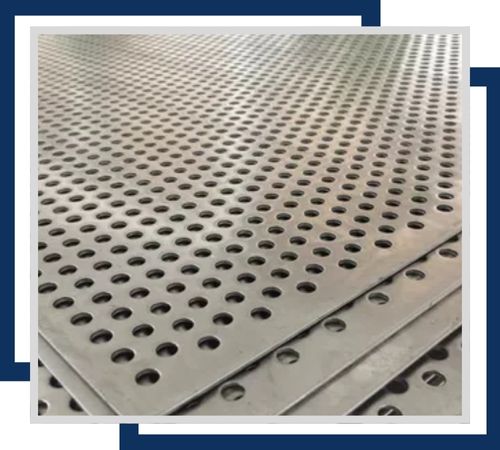

Stainless Steel 310 perforated sheets have available hole sizes and patterns that create aesthetic and practical benefits. Generally, thickness varies from 0.5 mm to 6 mm and finds application in filtration, ventilation, and decoration purposes.

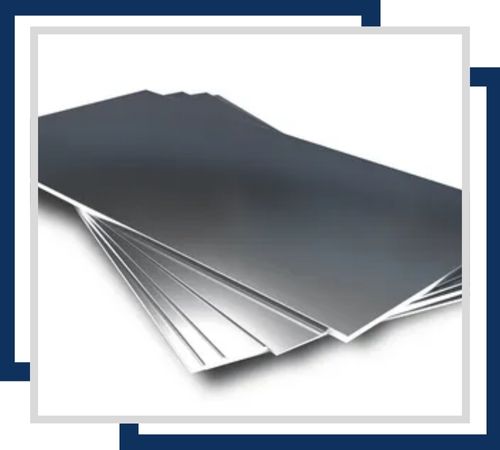

The shim sheets are made of stainless steel 310S and are available in thickness ranging from 0.1 mm to 1 mm. The thin sheets produce exact gaps or spaces in mechanical assemblies for adjustment.

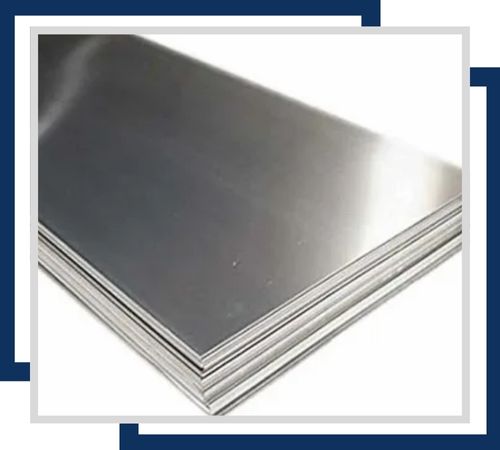

Stainless steel 310S polished plates combine corrosion resistance with high-quality finishes, both aesthetic and functional. They are available in 0.5 mm to 50 mm thickness and extensively used for decorative and high-end industrial applications.
Khaled Stainless is providing a hassle-free experience to our esteemed customers by issuing a complete documentation set for all our high-grade Stainless Steel 310/310S Sheets and Plates. Documents such as Commercial Invoices, Packing Lists, Fumigation Certificates, Heat Treatment Charts, Quality Assurance Plans, NABL-approved Laboratory Test Reports accompany our products ensuring authenticity and superb quality. In addition, our Stainless Steel 310/310S Sheets and Plates are provided with a variety of test certificates, such as MTC in accordance with EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, which reflect our commitment to customer satisfaction and our continuous pursuit of product excellence.
Thanks to their outstanding heat resistance, Stainless Steel 310/310S Sheets and Plates are widely utilized in high-temperature and corrosive environments. They’re commonly found in furnace components, heat exchangers, kilns, burner tubes, and combustion chambers. In power generation and petrochemical facilities, they’re the go-to choice for steam boilers, catalytic systems, and heat-treatment equipment. Their durability also makes them ideal for food processing units, industrial ovens, and thermal processing plants. Plus, their corrosion resistance makes them suitable for chemical processing equipment, cryogenic structures, and architectural elements that face extreme atmospheric conditions.
