Located in the bustling industrial heart of Cairo, Egypt, Khaled Stainless has built a reputation as a trusted manufacturer and supplier, particularly known for their expertise in high-performance materials. Their offering of Stainless Steel 309H Sheets and Plates is a prime example of their commitment to quality. This premium grade is specifically engineered to excel in demanding, high-temperature environments, making it an essential resource for industries throughout the region that require unmatched durability and heat resistance.
The impressive performance of 309H stems from its carefully balanced composition, which includes higher levels of chromium and nickel for superior oxidation resistance. This is further enhanced by its controlled carbon content, which gives it excellent strength and creep resistance when exposed to sustained high heat. These inherent material properties translate into sheets and plates that maintain their structural integrity, resisting warping or degradation even under the most thermally stressful conditions.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | ASTM, ASME and API |
| Thickness | : | 4.0mm – 100mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | : | SS 309H, (UNS S30909) |
| Grade | Si | Cr | Ni | Mn | Si | C | P | S |
| SS 309H | 0.75 | 22.0-24.0 | 12.0-15.0 | 2.00 | 0.75 | 0.04-0.10 | 0.045 | 0.030 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 309H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

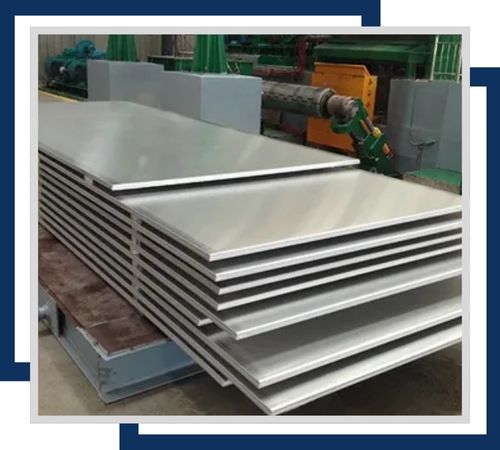

Due to excellent corrosion resistance, these sheets are manufactured at very high temperatures. Mechanical properties are improved by that manufacturing process. They are available with thicknesses in range of 3 mm up to 50 mm and width up to 2000 mm for structural and industrial applications.

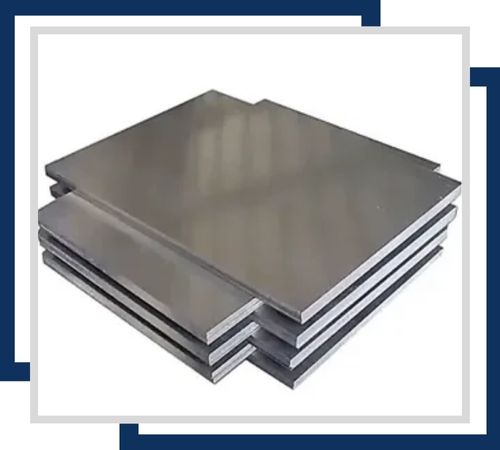

The cold rolled plates were produced at room temperature with a polish finish. The plates come in various thicknesses from 0.5 mm to 6 mm and widths as much as 1500 mm making it very ideal for precision and aesthetic purposes.

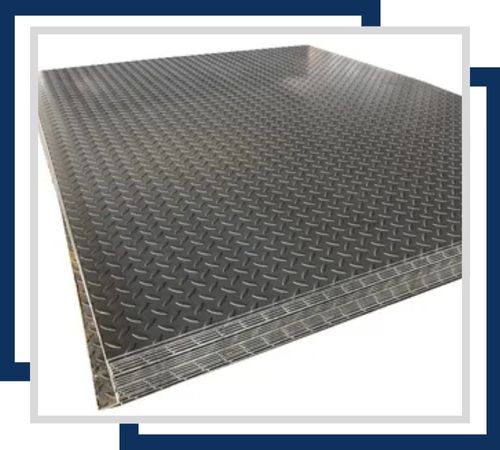

These plates offer excellent corrosion resistance and a textured surface for improved grip and slip resistance. They are usually available in thicknesses from 3 mm to 10 mm and dimensions up to 2000 mm x 1000 mm, and are used in flooring and safety applications.

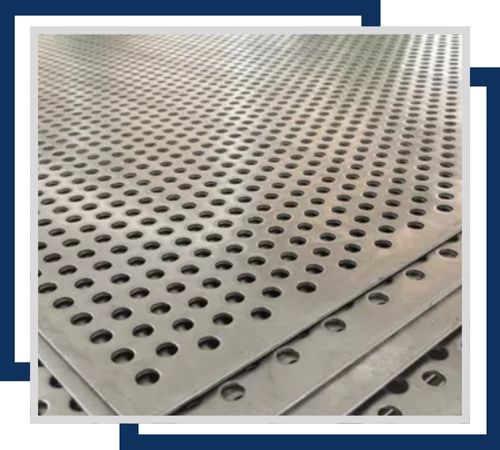

The perforated sheet has strong resistance to corrosion with various hole patterns for functional as well as for aesthetic purposes. Sizes are commonly between 0.5 and 6 mm in thickness, and up to 2000 mm x 1000 mm in dimensions to be used in filtration and ventilation.

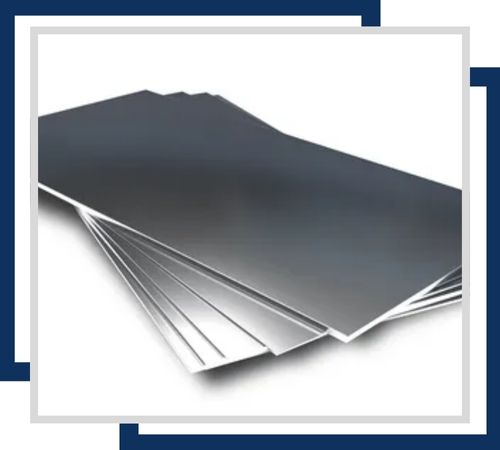

These thin sheets give good corrosion resistance and are applied to spacing and levelling accurately. The availability is as thin as 0.1 mm, with up to 1000 mm width. These sheets are of crucial use for aligning machinery and construction work.

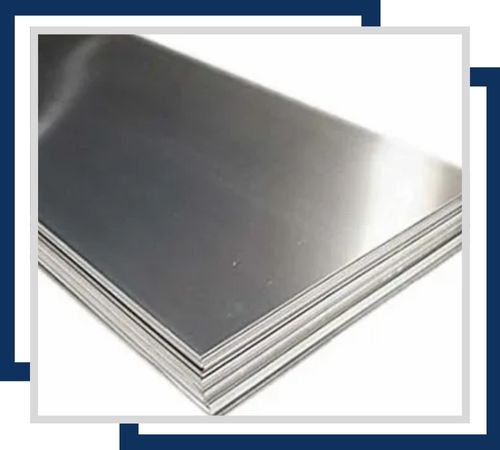

Polished plates offer excellent resistance to corrosion with a highly reflective finish through polishing. They have thicknesses in the range of 1-20 mm, and their dimensions could go up to 2000 mm x 1000 mm, commonly being used in decoration and architecture applications.
Khaled Stainless is a leading supplier and stockist of high-quality stainless steel 309H sheet and plates in Cairo, Egypt. Our products are widely used in various applications, and we are committed to delivering excellent service, resulting in high customer satisfaction. Our unique finishing techniques further distinguish us in the stainless steel industry. We are dedicated to consistently providing superior products and effectively meeting our customer’s needs.
This makes Stainless Steel 309H an invaluable material across numerous critical sectors. It is commonly specified for the construction of industrial furnaces, heat treatment equipment, and vital components within power generation plants. Furthermore, its reliability is essential in the petrochemical industry for parts like boiler casings and reformer systems. From handling extreme temperatures in manufacturing to forming the backbone of energy infrastructure, this alloy is chosen for applications where failure is not an option.
