Strategically located in the bustling industrial heart of Cairo, Egypt, Khaled Stainless has established itself as a trusted name for high-performance metal components. We specialize in providing robust Stainless Steel 309H forged fittings, a product line chosen for its exceptional resilience in demanding environments. Our commitment goes beyond simple supply; we ensure our clients receive components backed by deep technical knowledge and a dedication to meeting the specific, often challenging, requirements of industries across the region and beyond.
The exceptional service life of 309H forged fittings begins with their specific composition, which includes high levels of chromium and nickel for outstanding oxidation resistance. This is enhanced by a carefully controlled carbon content, which gives these fittings their superior strength and creep resistance at elevated temperatures. The forging process itself further refines the material’s grain structure, resulting in excellent mechanical properties like high tensile strength and durability that can withstand significant pressure and thermal cycling.
| Specifications | ASTM A403 / ASME SA403, ASTM A182 & ASME SA182 |
| Forged Fittings Standards | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Buttweld Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Buttweld Fittings Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Forged Fittings Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Buttweld Fittings Type | Seamless / Welded / Fabricated |
| Forged Fittings Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Buttweld Fittings Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Buttweld Fittings Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Grade | C | Mn | Si | P | S | Cr | Ni | Fe | |
| SS 309H | 0.04-0.10 | 2.0 | 0.75 | 0.045 | 0.03 | 22.0-24.0 | 15.0 | 58.0-63.0 | |
| Grade | Tensile Strengtd ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) max |
| 309H | 40 | 30 | 40 | 217 |
Contact us to get a quick quote for your requirement.
All Stainless Steel 309H Forged Fittings produced at Khaled Stainless are stringently tested for quality and performance. Every product is certified to international standards, including ISO, ASTM, and ASME specifications. The material analysis, hardness, tensile strength, and pressure test are also conducted on the entire range for reliability and adherence to different industrial applications.

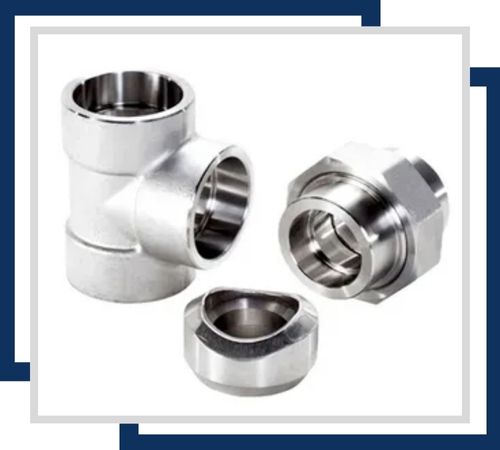

Corrosion-resistant and durable Stainless Steel 309H Socket Weld Fittings are used in high-temperature applications. They typically come in sizes ranging from 1/4″ to 4″, designed to withstand pressures up to 3000 psi, offering a reliable connection in critical systems.
Known for excellent corrosion resistance, Stainless Steel 309H Threaded Fittings are ideal for high-temperature environments. They are available in sizes from 1/8″ to 6″, featuring standard threading for easy assembly and disassembly, making them suitable for various piping systems.

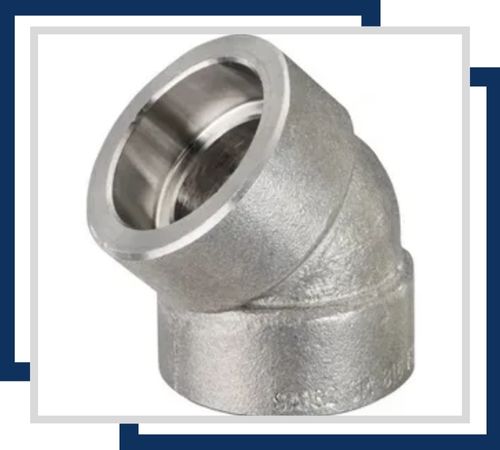

The Stainless Steel 309H Socket Weld 45 Degree Elbow has outstanding corrosion resistance and is designed for directional changes in piping systems. It comes from 1/2″ to 4″, offering a durable solution for high-temperature and high-pressure applications.

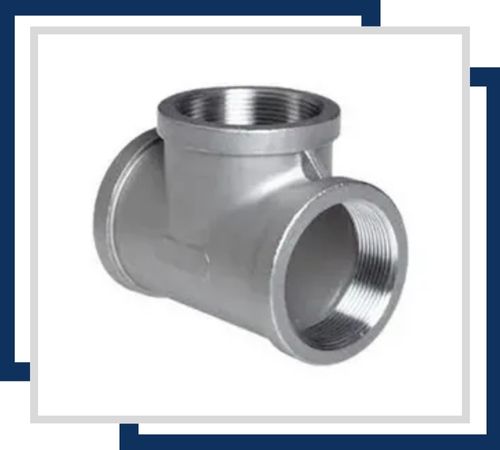

Stainless Steel 309H Threaded Tee offers superior corrosion resistance and creates branches in piping systems. Available in sizes ranging from 1/8″ to 6″, it ensures strong, leak-proof connections and is suited for high-temperature and pressure applications.

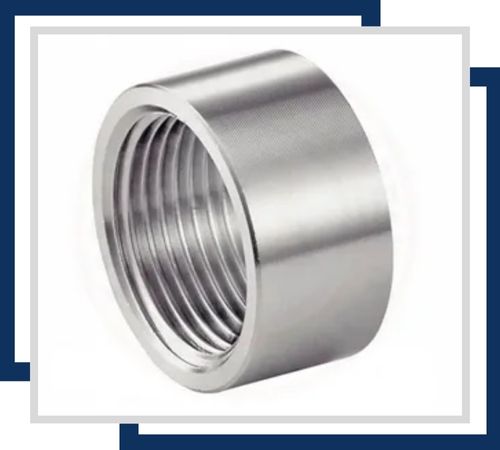

The Stainless Steel 309H Threaded Half Coupling offers excellent corrosion resistance and connects pipes of the same size. Sizes range from 1/8″ to 6″, designed for high-temperature environments, providing robust and secure fittings in piping systems.

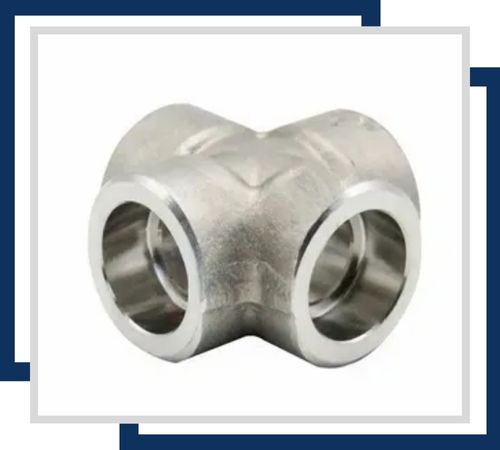

The Stainless Steel 309H Socket Weld Cross has excellent corrosion resistance and allows for four-way connections in piping systems. Available in sizes from 1/2″ to 4″, it is ideal for high-temperature applications and offers a durable solution for complex pipe layouts.
The primary use for 309H forged fittings is in high-temperature applications where ordinary materials would quickly fail. You will find them expertly managing extreme heat in furnace systems, industrial ovens, power generation facilities, and the intricate piping of refinery and petrochemical plants. Their ability to resist corrosion and oxidation makes them equally valuable for handling aggressive media, ensuring long-term reliability and safety in processes where failure is not an option, from chemical processing to thermal transfer systems.
