Khaled Stainless is a reputable manufacturer and supplier located in Cairo, Egypt, specializing in high-quality Stainless Steel 305 Sheets and Plates tailored to meet a variety of industrial needs. Renowned for their commitment to excellence in production and strict adherence to international standards, the company guarantees products that boast exceptional formability, corrosion resistance, and durability. Their Stainless Steel 305 materials are crafted using cutting-edge manufacturing techniques, ensuring consistent performance, particularly in applications that demand enhanced workability. With a strong focus on customer satisfaction, Khaled Stainless caters to industries such as automotive, electronics, food processing, and general manufacturing, both regionally and globally.
The Stainless Steel 305 Sheets and Plates feature a higher nickel content—typically between 10.5% and 13%—which greatly enhances deep-drawing capabilities and minimizes work-hardening rates. With 17% to 19% chromium content, this alloy provides excellent corrosion resistance and stability. These sheets and plates exhibit moderate tensile and yield strength, high ductility, and outstanding formability, making them perfect for complex fabrication tasks. Their low work-hardening properties facilitate easier cold forming without sacrificing mechanical integrity, ensuring reliable performance in applications that require extensive shaping and bending.
| Element | 305 |
| Carbon | 0.12 |
| Chromium | 17.0-19.0 |
| Nickel | 10.5-13.0 |
| Manganese | 2.00 |
| Silicon | 0.75 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Property | 305 |
| Yield Strength, min. (ksi) | 25 |
| Tensile Strength, min. (ksi) | 70 |
| Elongation, min. (%) | 40 |
| Hardness, max. (Rb) | 88 |
Contact us to get a quick quote for your requirement.

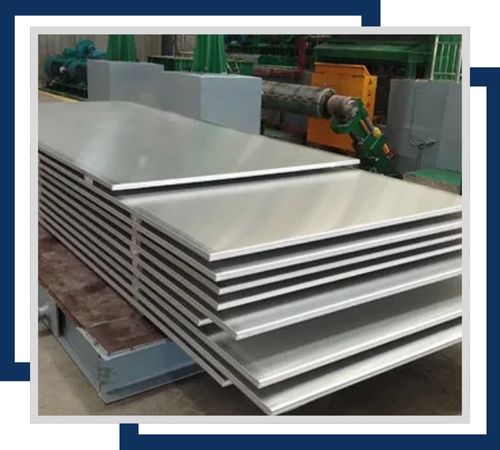

The 305 stainless steel in hot rolled sheets is corrosion-resistant, strong, and versatile. These sheets are usually available in various thicknesses between 1.5mm and 25mm and up to 2000mm in width. Ideally, they find applications in heavy-duty sectors and structural elements.

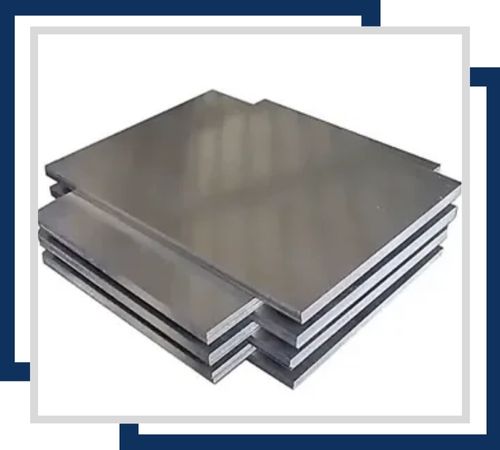

These cold-rolled plates have excellent corrosion resistance and a smooth, polished surface. They are available in thicknesses from 0.3mm to 3mm and widths up to 1500mm and are widely used in automotive, kitchen, and architectural applications.

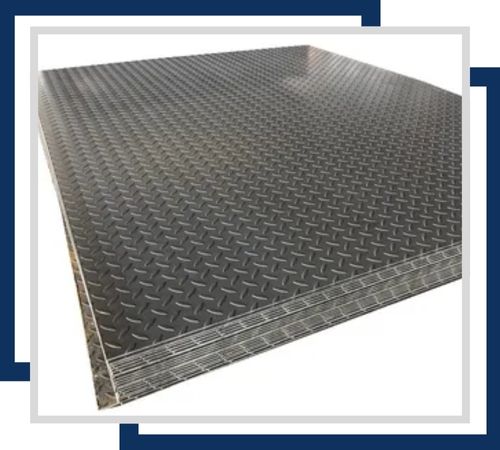

Stainless Steel 305 chequered plates are surface patterned with slip resistance; they have a good corrosion-resistant property. It is available in 2mm to 10mm thickness and 1250mm width for use in flooring and stair treads.

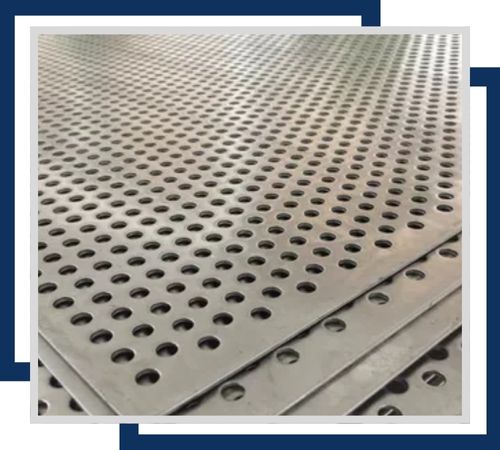

The perforated stainless steel 305 sheets have been specially designed to exhibit excellent corrosion resistance, having holes for ventilation and aesthetic purposes. They usually vary in sizes ranging from 0.5mm to 6mm thickness. The sheet may be ordered as per required dimension and hole pattern.

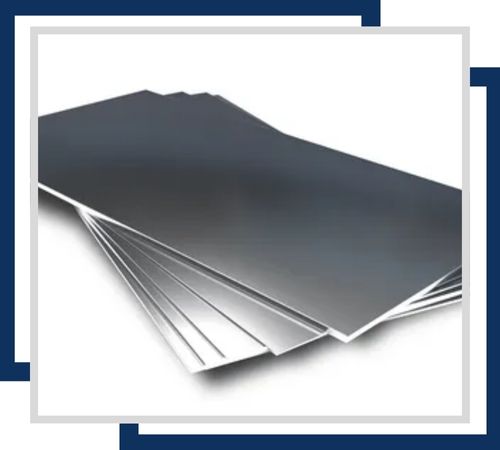

Used for precise spacing and levelling, these shim sheets provide superior corrosion resistance. These are available in thicknesses ranging from 0.1mm to 3mm and in various dimensions and are ideal for mechanical and structural applications where exact tolerances are required.

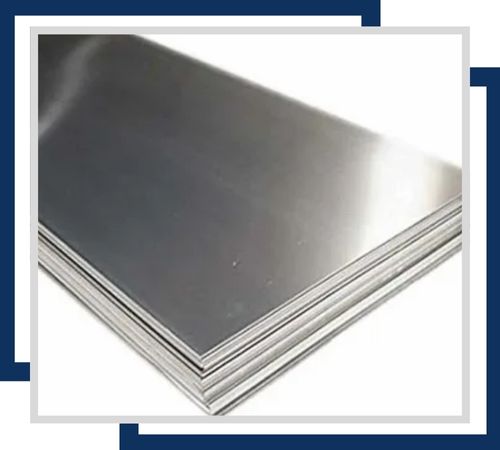

Known for their excellent corrosion resistance and aesthetic appeal, polished plates come in thickness from 0.5mm up to 50mm and up to 2000mm width. They are mainly used for decorative and high-visibility applications where a desired high-gloss finish is achieved.
Khaled Stainless promises superior customer satisfaction supplemented by thorough documentations of Stainless Steel 305 Sheets and Plates. The documentations that our company offers contain the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. All the documents authenticate products for superiority qualities and thereby are helpful in attaining the utmost trust from all valued customers. We also provide Stainless Steel 305 Sheets and Plates along with various test certificates, which include MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates reflect our customer-focused approach and our commitment to continuous product excellence.
Stainless Steel 305 Sheets and Plates are commonly utilized in scenarios where top-notch formability and corrosion resistance are crucial. They are particularly well-suited for deep-drawn components like kitchen equipment, utensils, food processing machinery parts, and household appliances. In the automotive sector, they find applications in trim, architectural features, and interior components that require precise shaping. Their stability and resistance to atmospheric corrosion also make them ideal for electronic hardware, stampings, brackets, and decorative items. Furthermore, these materials are used in chemical processing equipment, pharmaceutical machinery, and various other applications.
