Khaled Stainless, located in Cairo, Egypt, is a trusted manufacturer and supplier of Stainless Steel 202 flanges, perfect for cost-effective piping and structural needs. These flanges are crafted with meticulous attention to detail, ensuring precise dimensions, controlled machining, and a consistent surface finish for a perfect fit and leak-free performance. Khaled Stainless provides SS 202 flanges for light industrial piping, water lines, HVAC systems, and utility networks, focusing on strength and affordability. With certified raw materials, reliable stock, and a steady supply, Khaled Stainless offers budget-friendly stainless steel flange solutions for non-aggressive service conditions.
Stainless Steel 202 is a low-nickel, manganese-rich austenitic stainless steel that typically contains around 17–19% chromium, 4–6% nickel, and 7–10% manganese, with carbon levels usually below 0.15%. The increased manganese content helps offset the lower nickel, providing solid strength. The typical mechanical properties of SS 202 flanges include a tensile strength of about 520–760 MPa, yield strength around 275–350 MPa, and an elongation of roughly 30–40%. While SS 202 is non-magnetic in its annealed state, it can develop slight magnetism after cold working.

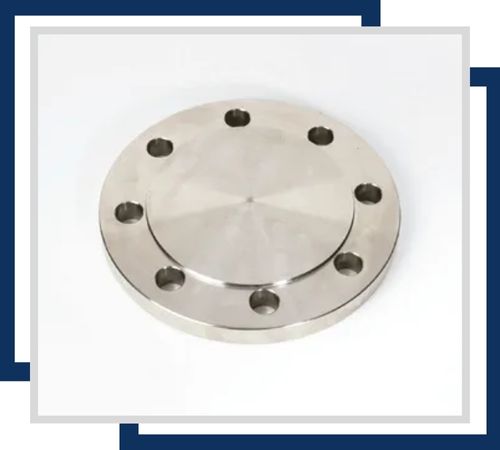

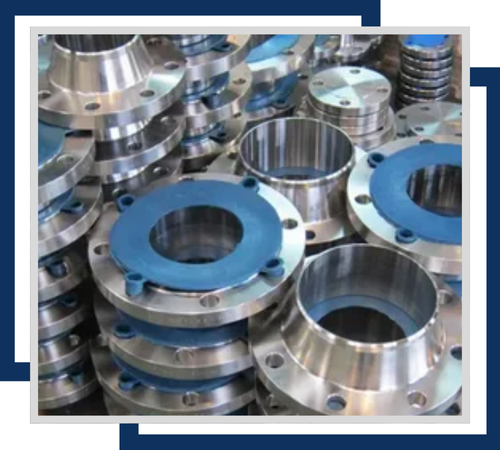

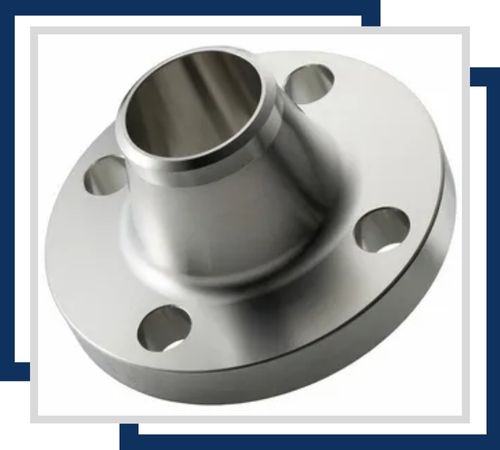

| ASME/ANSI B16.5 | Welding Neck Flange, Slipon Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| Pressure Class | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B16.47 | Welding Neck Flange, Blind Flange (Series A & B) |
| Pressure Class | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | (Orifice Flanges) Welding Neck Flange, Slipon Flange, Threaded Flange |
| Pressure Class | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Flange (111/134), Hubbed Slipon Flange (112), Hubbed Threaded Flange (113), Lapped Pipe End Flange (133), Plate Flange (101), Loose Plate Flange (102), Loose Plate with Weld-neck Flange (104), Blank Flange (105) |
| Pressure Class | PN 2.5 to PN 100 |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
Contact us to get a quick quote for your requirement.
Testing and certification of all Khaled Stainless Flanges of Stainless Steel 202 will be done at all levels so that the material will be completely tested for performance and quality. The flange is tested as per international standards for mechanical, chemical, and dimensional inspections. With every order, CoC and MTR are provided with traceability against industry requirements. In response to specific requirements of a project, PMI, hardness tests, and other kinds of testing may be requested on an additional testing basis.

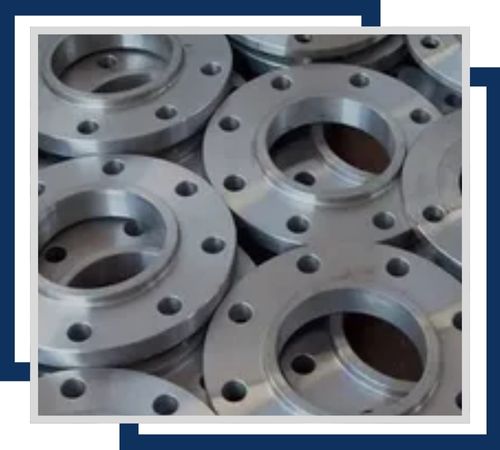

Stainless Steel 202 Threaded Flanges provide a secure, leak-proof connection with easy installation and removal. Ideal for applications requiring high corrosion resistance, they offer durability and strength in various industrial settings.

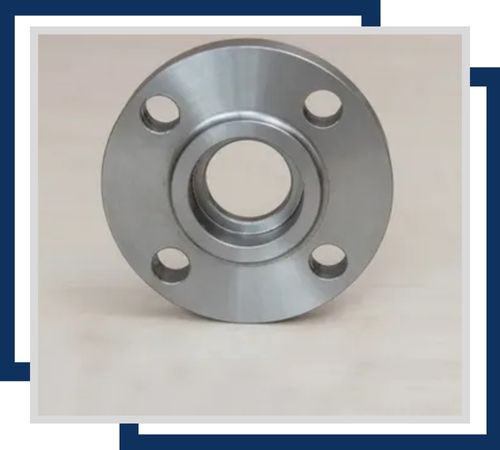

SS Socket 202 Weld Flanges feature a recessed socket for easy welding, providing a strong, corrosion-resistant connection. Ideal for high-pressure applications, they offer durability and reliable performance in challenging environments.

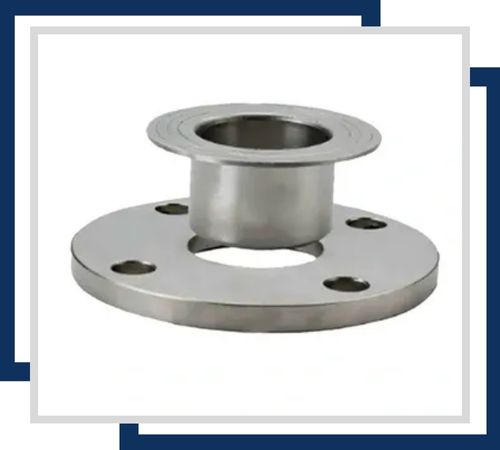

Stainless Steel 202 Lap Joint Flanges offer flexibility with easy alignment and disassembly. Their corrosion-resistant properties make them ideal for systems requiring frequent maintenance, ensuring durable and reliable connections.
Stainless Steel 202 flanges are commonly found in piping systems that require moderate corrosion resistance, solid mechanical strength, and budget-friendly pricing. You’ll often see them in water supply pipelines, air and gas lines, HVAC systems, light industrial piping, non-acidic food handling lines, and residential plumbing networks. These flanges are also utilized in structural fabrications and utility projects where exposure to harsh chemicals or saltwater is minimal. SS 202 flanges perform admirably in dry and mildly humid environments, making them a versatile choice for various applications.
