Khaled Stainless, based in Cairo, specializes in providing Stainless Steel 201 stud bolts that are perfect for cost-conscious fastening needs where moderate corrosion resistance and solid strength are essential. These stud bolts are crafted with precision, adhering to strict dimensional and thread tolerances. They are cold-headed and machined from certified SS201 bar stock, complete with full traceability and batch test documentation. Khaled Stainless prioritizes consistent thread form, controlled hardness, and clean finishes to guarantee reliable assembly performance in indoor and mildly corrosive settings. Available in standard lengths and diameters for industrial and construction applications, these studs present a budget-friendly option compared to higher-nickel grades when conditions aren’t too harsh.
SS201 is a low-nickel, high-manganese austenitic stainless alloy with a typical composition of Cr ~16–18%, Ni ~3.5–5.5%, Mn ~5.5–7.5%, along with C ≤0.15%, Si, and trace amounts of N. The manganese helps offset the lower nickel content, ensuring adequate austenite stability and strength. For stud bolts made from SS201, the typical mechanical properties include a tensile strength ranging from 500–700 MPa, yield strength around 250–350 MPa, and elongation between 25–40%, depending on the cold-working process. While SS201 is non-magnetic when annealed, it can develop slight magnetism after cold forming, making it unsuitable for aggressive chloride environments.
| Specifications | ASTM A193 ASME SA193 / ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Standard | DIN, ASTM, BS and all International Standards |
| Stud Bolts Size | 3 mm to 200 mm | Custom Sizes |

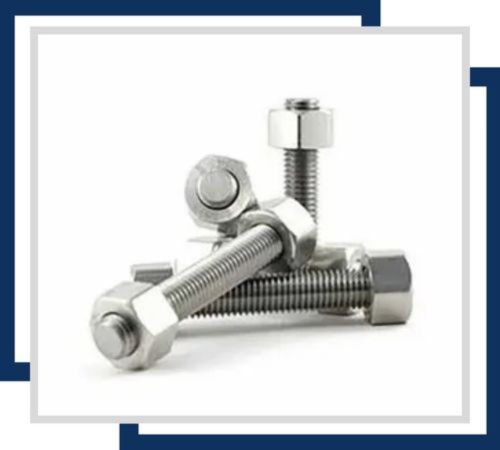

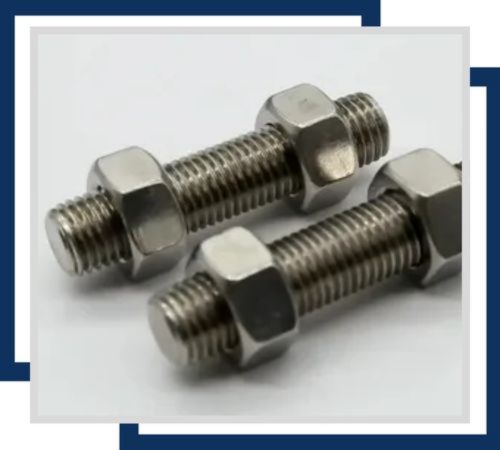

| Stud Bolts Types | Threaded Rod, Class A double ended stud, Tie Rod, Double Ended Stud, Stud Bolts, Threaded Studs etc |
| Element | 201 |
| Carbon | 0.15 |
| Chromium | 16.0-18.0 |
| Nickel | 3.5-5.5 |
| Manganese | 5.50-7.50 |
| Silicon | 1.00 |
| Nitrogen | 0.25 |
| Phosphorus | 0.060 |
| Sulfur | 0.030 |
| Property | 201 |
| Yield Strength, min. (ksi) | 45 |
| Tensile Strength, min. (ksi) | 95 |
| Elongation, min. (%) | 40 |
| Hardness, max. (Rb) | 100 |
Contact us to get a quick quote for your requirement.

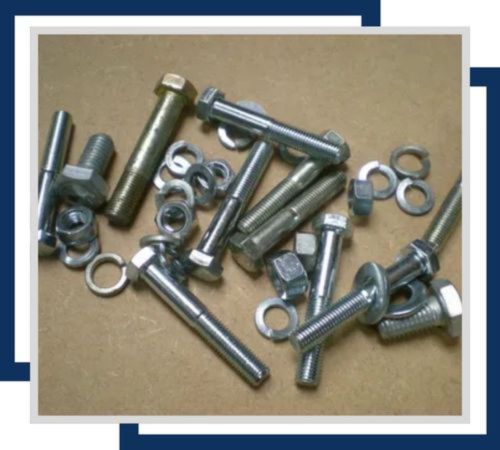

Stainless Steel 201 Tie Rods are robust and corrosion-resistant components used to stabilize structures and equipment. Their durable construction ensures reliable performance in various demanding applications and environments.

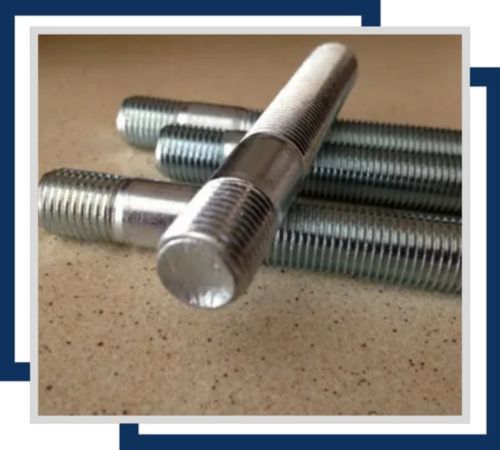

Stainless Steel DIN 2.4068 Stud Bolts are high-quality fasteners designed for strength and corrosion resistance. Ideal for heavy-duty applications, they meet DIN standards for precision and durability in demanding environments.

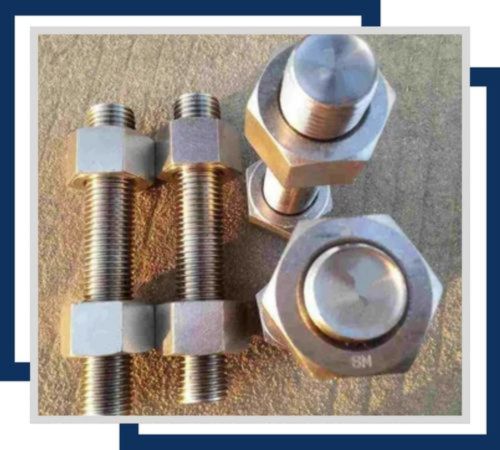

Stainless Steel UNS S20100 Stud Bolts are durable fasteners known for their corrosion resistance and strength. Suitable for various industrial applications, they offer reliable performance and adherence to UNS specifications for quality.
Khaled Stainless offers high-grade quality stainless steel 201 stud bolts along with hardness, PMI, tensile strength tests, chemical analysis, and pitting resistance testing. Product reliability is ensured by checks in IGC and structural tests. Documents provided include the invoice, list of packaging, and Certificate of Origin, legalized by the Chamber of Commerce or Embassy. Along with Third Party Inspection Certificates, we give excellent performance at a competitive price, on-time delivery, ensuring full satisfaction to our clients.
SS201 stud bolts are ideal for applications where cost and strength take precedence over high corrosion resistance. They are commonly used in indoor structural assemblies, machinery mounting, HVAC ducts, decorative fixtures, furniture assembly, and light industrial equipment. You’ll find them frequently in commercial interiors, partition systems, and non-critical piping supports, especially in dry or only mildly corrosive environments. Additionally, SS201 studs are utilized in automotive trim, appliance assembly, and fabrication projects where large volumes are needed without the requirement for extreme corrosion resistance.
