Khaled Stainless, located in Cairo, Egypt, stands out as a trusted manufacturer and supplier of high-performance Stainless Steel 15-5 PH sheets and plates, specifically designed for critical engineering and structural applications. These precipitation-hardening stainless steel products are crafted with meticulous attention to chemical composition, flatness, thickness tolerance, and heat-treatment conditions, ensuring reliable mechanical performance. Khaled Stainless caters to sectors like aerospace, defense, petrochemical, power generation, and heavy machinery, where high strength, toughness, and corrosion resistance are vital. With certified testing, dependable availability, and consistent quality, Khaled Stainless is committed to supporting precision fabrication for high-load and safety-critical components.
Stainless Steel 15-5 PH is a precipitation-hardening martensitic stainless steel that contains around 14–15.5% chromium, 3.5–5.5% nickel, and 2.5–4.5% copper, along with small amounts of niobium and very low carbon. It’s engineered to offer better transverse toughness and ductility compared to 17-4 PH. After aging, typical mechanical properties include a tensile strength of about 900–1300 MPa, yield strength around 800–1150 MPa, and an elongation of roughly 8–16%. This alloy strikes an excellent balance between strength and toughness while providing good corrosion resistance.
| Specification : | ASTM A564 / ASME SA564 AMS 5643 |
| Standard : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length : | 1 to 6 Meters, Custom Cut Lengths |
| Form : | Round, Square, Hex (A/F), Rectangle Etc. |
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 15-5 PH | 0.07 max | 0.15-0.45 max | 14.0-15.0 max | 2.5-4.5 max | Bal | 1.0 | 3.5-5.5 | 0.04 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 15-5 PH | 161,000 | 140,000 | 7.6% | C35 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
Contact us to get a quick quote for your requirement.

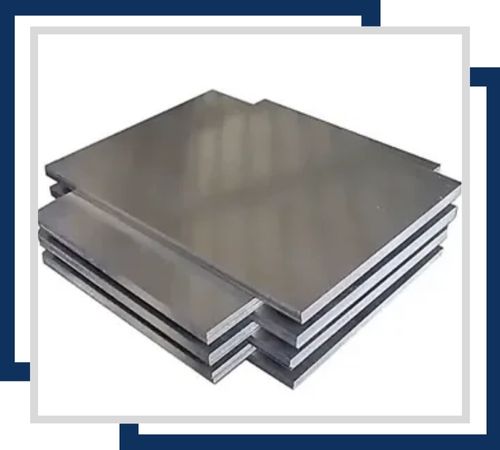

SS 15-5 PH cold-rolled sheets and plates are precision-formed stainless steel alloys that provide high strength, corrosion resistance and superior mechanical properties, Cold rolled for improved surface finish and tight tolerances. They are commonly used in high-performance applications such as aerospace, chemical processing, and construction materials, providing excellent durability and reliability
SS 15-5 PH is precipitation hardened sheet and plates, used in aerospace, marine, and chemical industries for high strength, corrosion resistance. They have excellent mechanical properties, hence provide durability along with resistance to stress corrosion cracking. Chequered plates are textured surface that provides improved grip and anti-slip properties.

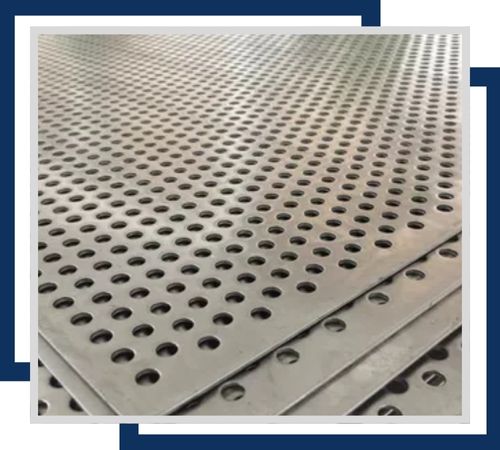

SS 15-5 PH is a good precipitation-hardening stainless steel available in sheet and plate form. Such perforated sheets and plates would offer a suitable combination of both strength and function with precise holes as filtration, venting, aesthetic design, retaining excellent mechanical properties.

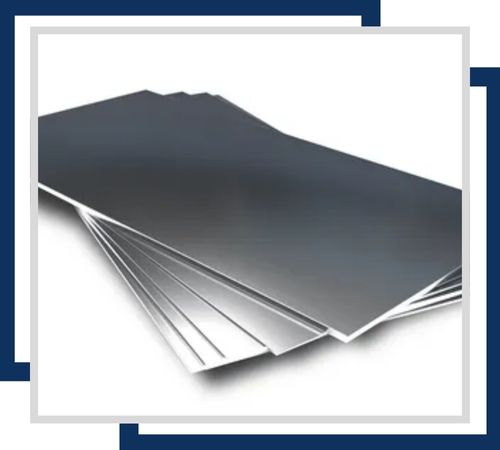

SS 15-5 PH (Precipitation Hardened) sheets and plates are high strength, corrosion resistant stainless steel. Shim sheets of SS 15-5 PH provide uniform thickness, providing excellent dimensional accuracy for gaps and locations in machinery or buildings for widespread applications in air, space, chemical and technology to increase performance.

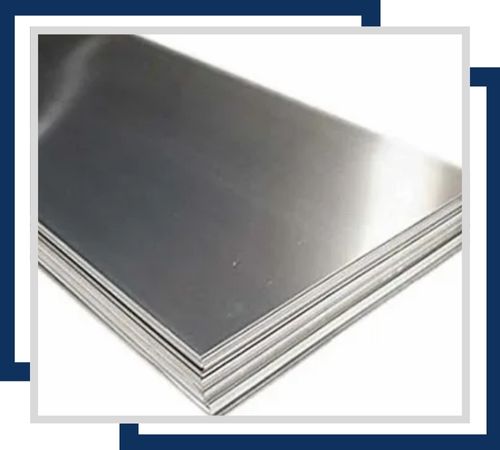

The polished SS 15-5 PH (Precipitation Hardened) plate is made of corrosion-resistant stainless steel with a smooth and luminous surface This plate provides excellent mechanical properties and resistance to compression which is difficult to crack. Commonly used in aerospace, marine and medical applications, they offer functional and aesthetic benefits along with excellent durability.
Khaled Stainless promises to serve customers with outstanding service, followed by detailed documents regarding high-quality sheets and plates for stainless steel 15-5 PH sheet and plate. Some of these basic documents consist of a commercial invoice, a packing list, fumigation certificate, a heat treatment chart, quality assurance plan, and the lab test report issued from NABL-approved labs. Such documents of the products bring us closer to the trust with the valued customer. In addition, we provide our Stainless Steel 15-5 PH Sheets and Plates with various test certificates, including MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates represent our commitment to quality and satisfaction of the customer.
SS 15-5 PH sheets and plates find their place in applications that demand high strength, exceptional toughness, and dependable corrosion resistance. You’ll commonly see them in aerospace structural panels, aircraft fittings, pressure vessel components, turbine parts, valve bodies, pump housings, marine hardware, defense equipment, and high-stress mechanical assemblies. These plates are extensively fabricated for industries like oil & gas, power generation, nuclear, and petrochemical, where components often face heavy demands.
