Home > Electrodes > AWS Class ER385 Mig & Tig Filler Welding Wire & Rod
Khaled Stainless, based in Cairo, Egypt, specializes in providing AWS Class ER385 MIG and TIG filler wire and rod designed for extreme corrosion conditions. Manufactured to meet AWS A5.9 / ASME SFA 5.9 standards, ER385 is the go-to filler for 904L-type and similar super-austenitic alloys, especially where resistance to sulfuric, phosphoric, and chloride-laden environments is essential. Khaled Stainless meticulously manages melting, chemistry, and spool/rod finishing to guarantee low residuals and dependable arc performance. Available in standard diameters for GMAW and GTAW, these fillers come with traceable test certificates and welding guidance tailored for chemical, fertilizer, and heavy process plant fabricators.
ER385, which corresponds to UNS N08904 / 904L chemistry as deposited, is a high-nickel, copper-bearing super-austenitic filler. The typical deposited analysis includes: C ≈0.02, Cr ≈20–21%, Ni ≈24–26%, Mo ≈4.2–4.8%, Cu ≈1.2–1.6%, Mn ≈1–2.1% (with Fe as the balance); phosphorus and sulfur levels are tightly controlled. The mechanical properties after welding usually show tensile strength in the range of ~520–600 MPa and elongation around ~30–36% (depending on the process and heat input). The low carbon content and controlled impurities help minimize the risk of hot cracking, while the copper and molybdenum enhance resistance to acid and chloride attacks.
| Classification | AWS A5.9, ER385 |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER385 MIG & TIG Filler Metal Application & uses |
|
C | Mn | Si | Cr | Ni | Mo | S | P | Cu | |
Standard | ≤0.025 | 1.00-2.50 | ≤0.50 | 19.5-21.5 | 24.0-26.0 | 4.20-5.20 | ≤0.030 | ≤0.020 | 1.20-2.00 |
Test | 0.013 | 1.93 | 0.21 | 20.5 | 25.10 | 4.67 | 0.003 | 0.012 | 1.69 |
| Tensile Strength (psi) | 86,000 psi (593 MPa) |
|---|---|
| Yield Strength (psi) | 57,000 psi (393 MPa) |
| Elongation (%) | 42% |
Contact us to get a quick quote for your requirement.
Stainless Steel ER385 MIG filler wire, available in sizes from 0.8mm to 1.6mm, offers excellent corrosion resistance for welding high-alloy stainless steels. Ideal for critical industrial applications.

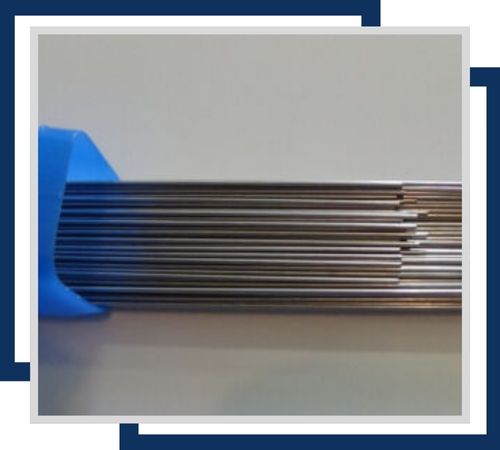

Stainless Steel ER385 TIG filler wire, ranging from 1.0mm to 3.2mm, provides superior corrosion resistance. Perfect for precision welding of high-alloy stainless steels in demanding environments.

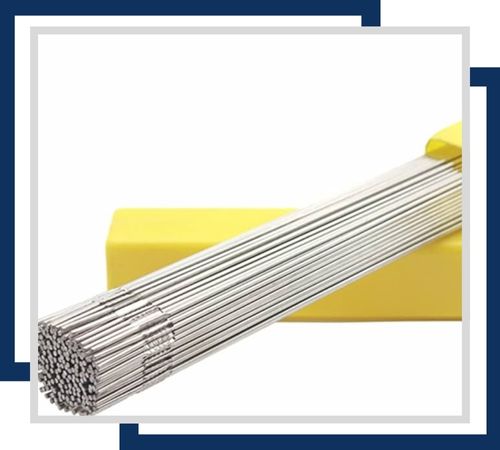

Stainless Steel ER385 TIG filler rod, available in sizes from 1.0mm to 3.2mm, ensures excellent corrosion resistance. Suitable for welding high-alloy stainless steels in various industrial applications.
We assure the highest quality for our AWS Class ER385 MIG and TIG Filler Welding Wire and Rod through comprehensive in-house testing and inspections. These products are engineered to provide excellent welding performance with enhanced resistance to corrosion and oxidation at high temperatures. We prioritize timely deliveries, ensuring that our clients receive their orders without delay, maintaining efficiency and reliability in every project.
ER385 filler is the choice for welds that need to endure harsh acids and environments rich in chlorides. Common applications include welding and cladding of 904L (UNS N08904) components, as well as the fabrication and repair of equipment used in sulfuric and phosphoric acid processing, heat exchangers, pickling lines, chemical reactors, storage tanks, and piping in fertilizer and chemical plants. It’s also
